THE 1940 SERIES
MILITARY INSPIRED INSTRUMENT SETS
COMPARE WITH STEWART WARNER WINGS
AMERICAN MADE QUALITY!

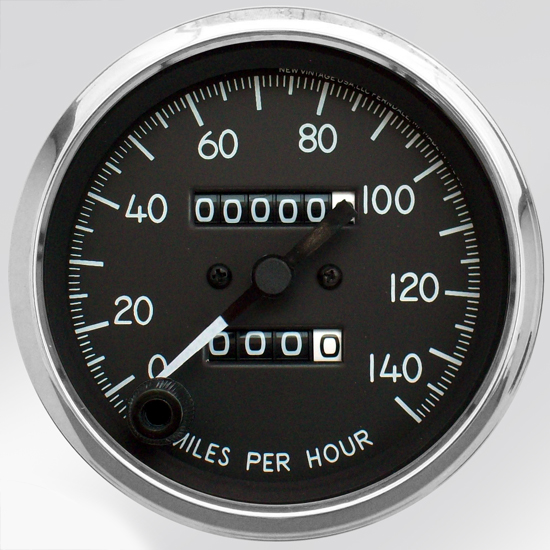

Inspired by military sets, we have duplicated the feel of the very popular aircraft and military gauges of the 30s and 40s, but with modern technology. Why buy salvage yard gauges that don’t match, or work for that matter? We started with the military graphics and upgraded to domed lenses and stainless steel bezels for an upscale, “5-Star General” appearance. The graphics are duplicated down to the smallest detail, and a white-tipped pointer adds to the effect. The mechanical speedometer features a trip odometer with reset switch. The patented bi-torque 2-1/16” gauges offer the modern technology behind the scenes to provide accurate readings. The new Vintage 1940 Series gages are made in the USA and feature our 5-year warranty.
MILITARY INSPIRED INSTRUMENT SETS
COMPARE WITH STEWART WARNER WINGS
AMERICAN MADE QUALITY!
Inspired by military sets, we have duplicated the feel of the very popular aircraft and military gauges of the 30s and 40s, but with modern technology. Why buy salvage yard gauges that don’t match, or work for that matter? We started with the military graphics and upgraded to domed lenses and stainless steel bezels for an upscale, “5-Star General” appearance. The graphics are duplicated down to the smallest detail, and a white-tipped pointer adds to the effect. The mechanical speedometer features a trip odometer with reset switch. The patented bi-torque 2-1/16” gauges offer the modern technology behind the scenes to provide accurate readings. The new Vintage 1940 Series gages are made in the USA and feature our 5-year warranty.
Bomber gauges military gauges moal style gauges stewart warner wings style gauges aircraft gauges aircraft clock military clock classic instruments hot rod style inexpensive hot rod gauges inexpensive street rod gauges 32 ford gauges t bucket gauges instruments
Traditional perimiter lit dials with incandescent bulbs assure good night time viewing
|
|
||
|
|
5-GAUGE KITS
6-GAUGE KITS
|
|
||
|
|
|
|
||
|
|
||
|
|
2-GAUGE KITS
|
|
||
|
|
||
|
|
INDIVIDUAL GAUGES
|
|
|
|
||||||||
|
|
|
|
||||||||
|
|
|
|
||||||||
|
|
|
|
||||||||
|
|
|
|
2-GAUGE KITS

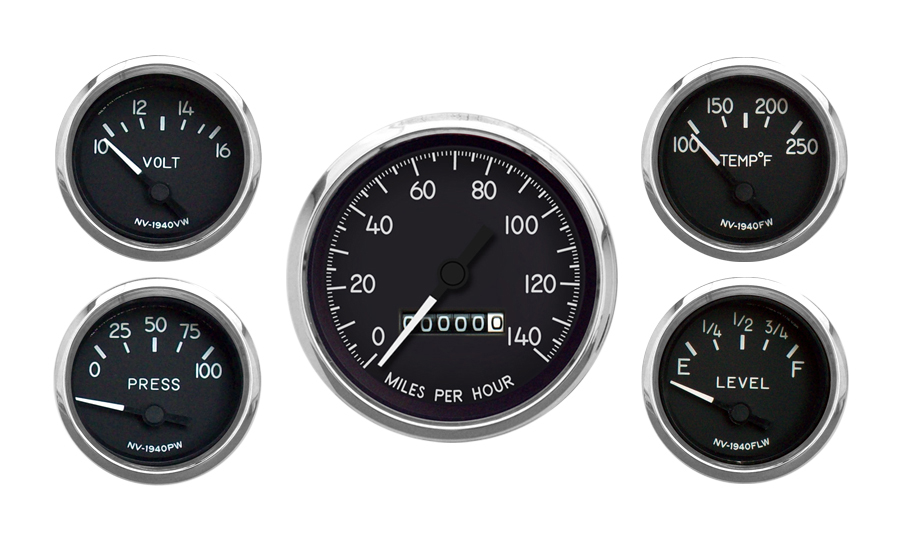

40504-01 1940 SERIES 5 GAUGE KIT BLACK

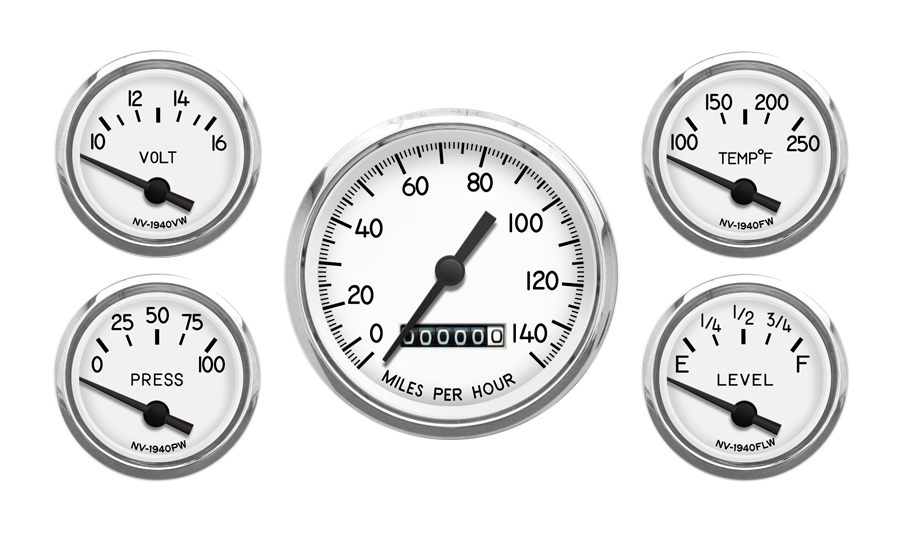

40504-03 1940 SERIES 5 GAUGE KIT WHITE

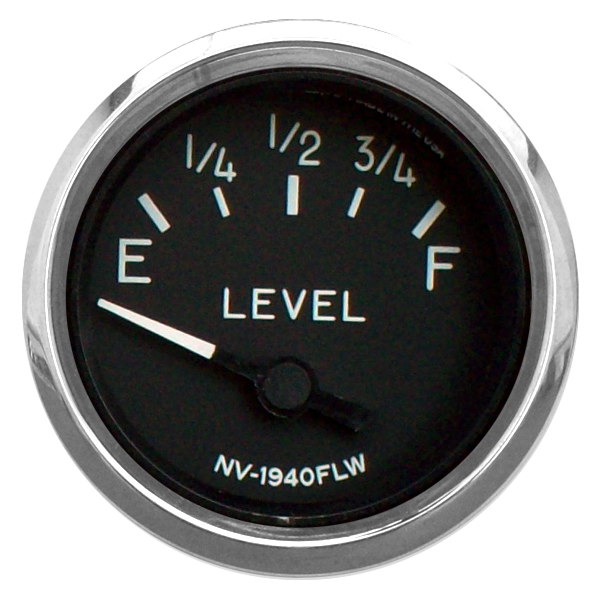

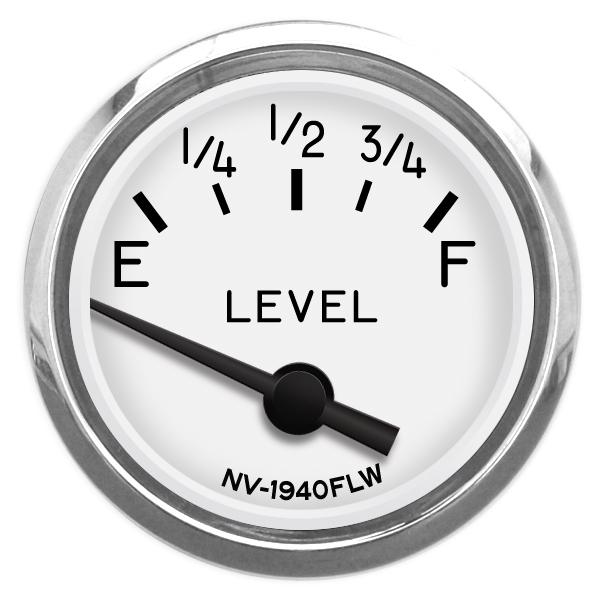

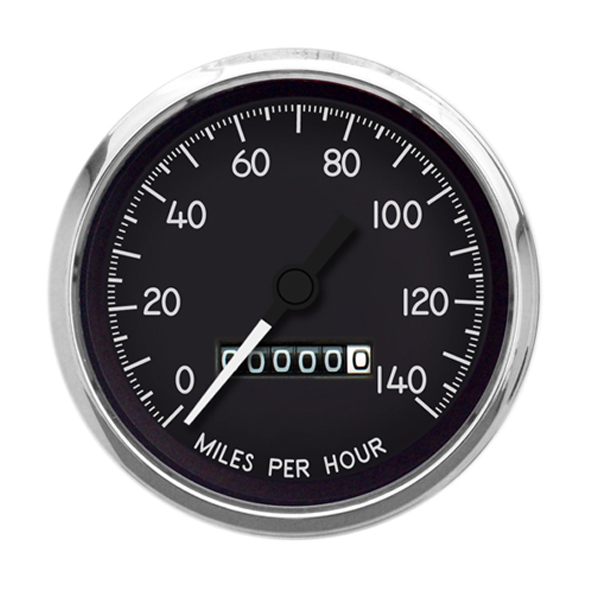

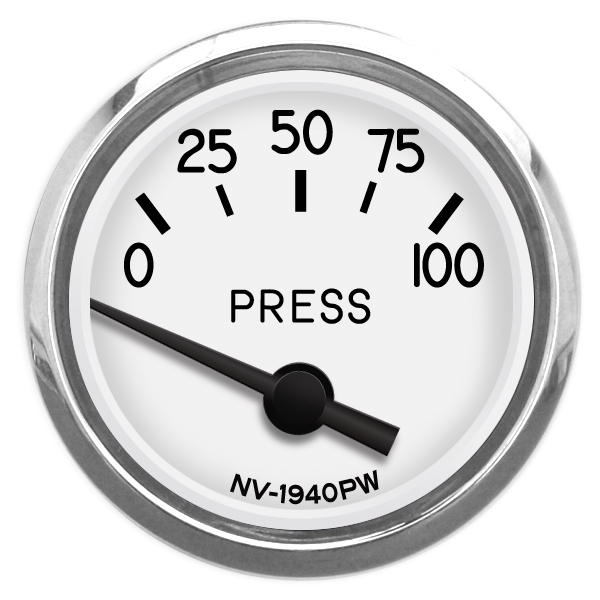

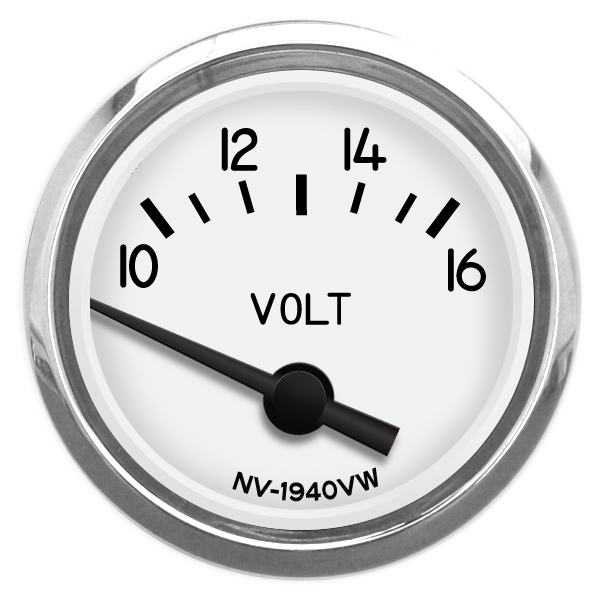

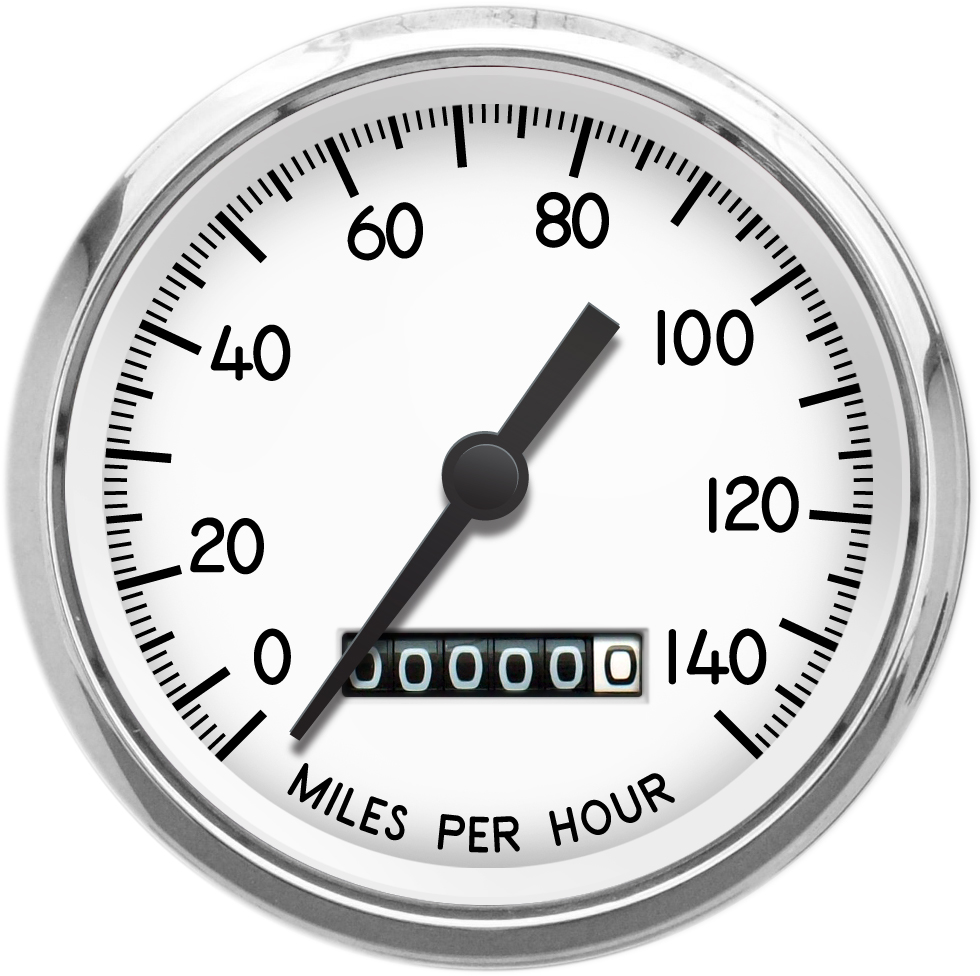

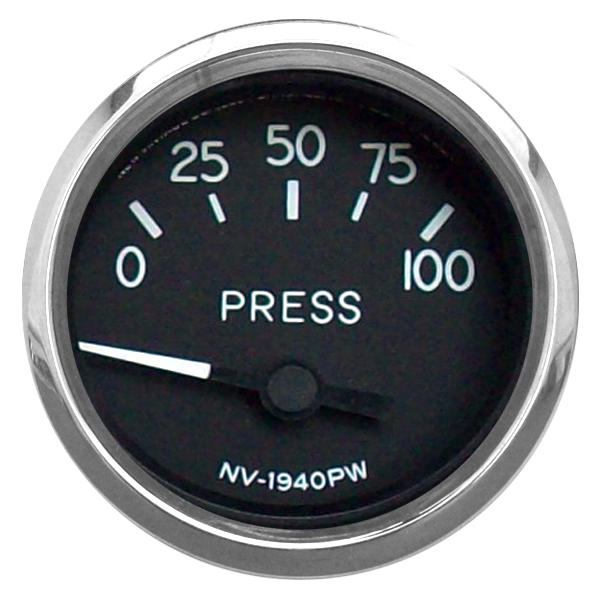

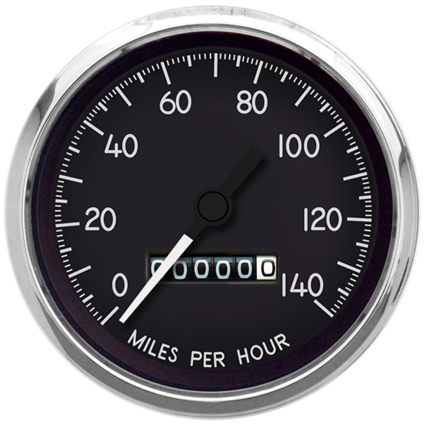

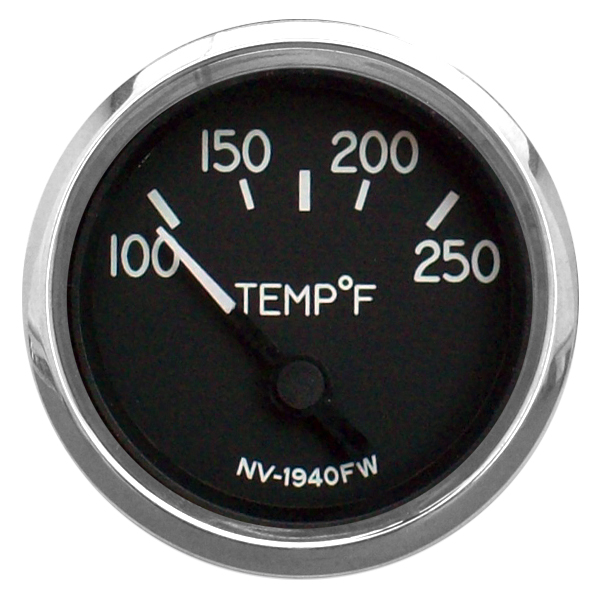

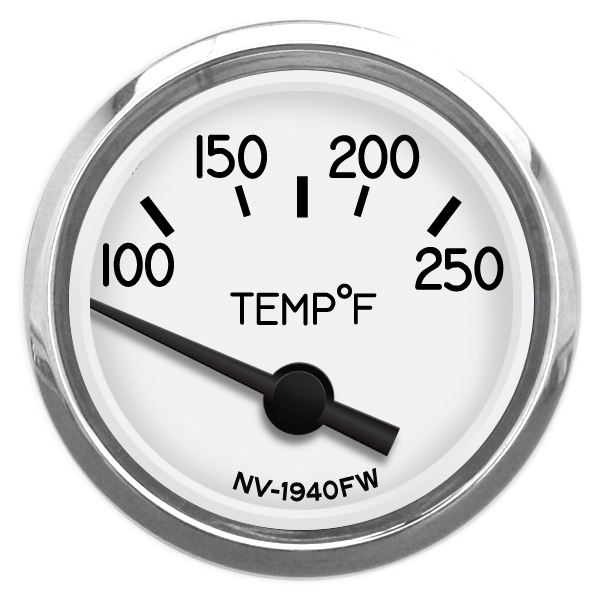

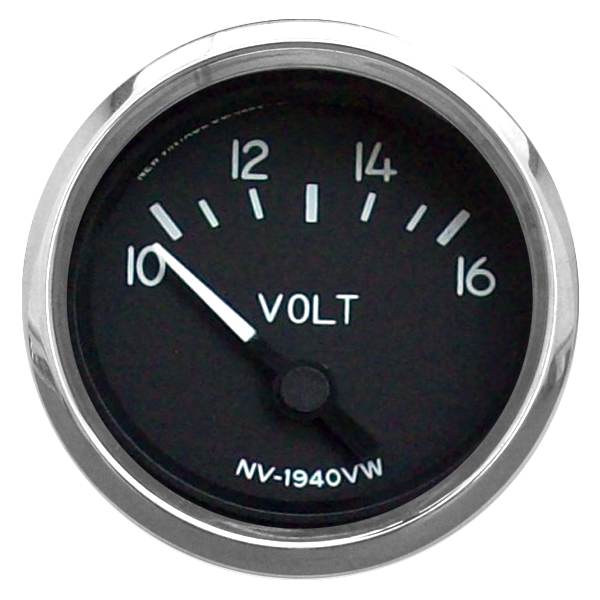

Kit includes 3-3/8 mechanical speedometer (5/8-18 thread .10404 square drive) 2-1/16 in fuel (E-F) temperature (100-250F) volts (10-16V) pressure (0-100 PSI). Temperature. pressure and adjustable universal 240-33 ohm fuel level senders adapter bushings and detailed instructions included.
40504-03 1940 SERIES 5 GAUGE KIT WHITE
Kit includes 3-3/8 mechanical speedometer (5/8-18 thread .10404 square drive) 2-1/16 in fuel (E-F) temperature (100-250F) volts (10-16V) pressure (0-100 PSI). Temperature. pressure and adjustable universal 240-33 ohm fuel level senders adapter bushings and detailed instructions included.

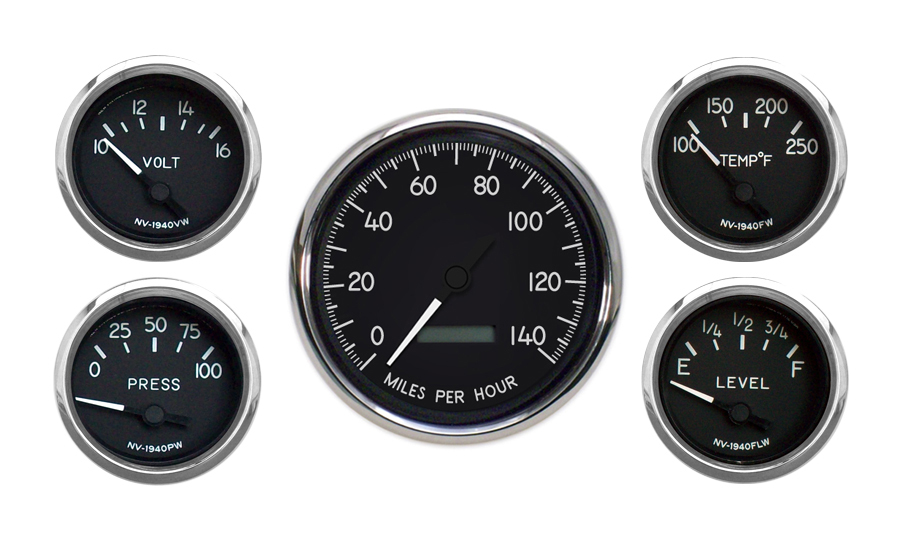

40514-01 1940 SERIES 6 GA KIT PROG SPEEDO BLACK

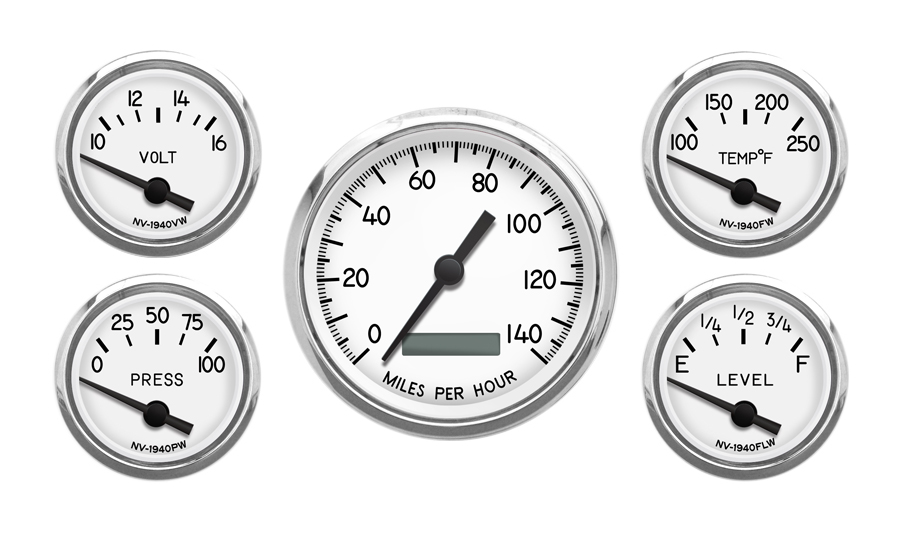

40514-03 1940 SERIES 6 GA KIT PROG SPEEDO WHITE

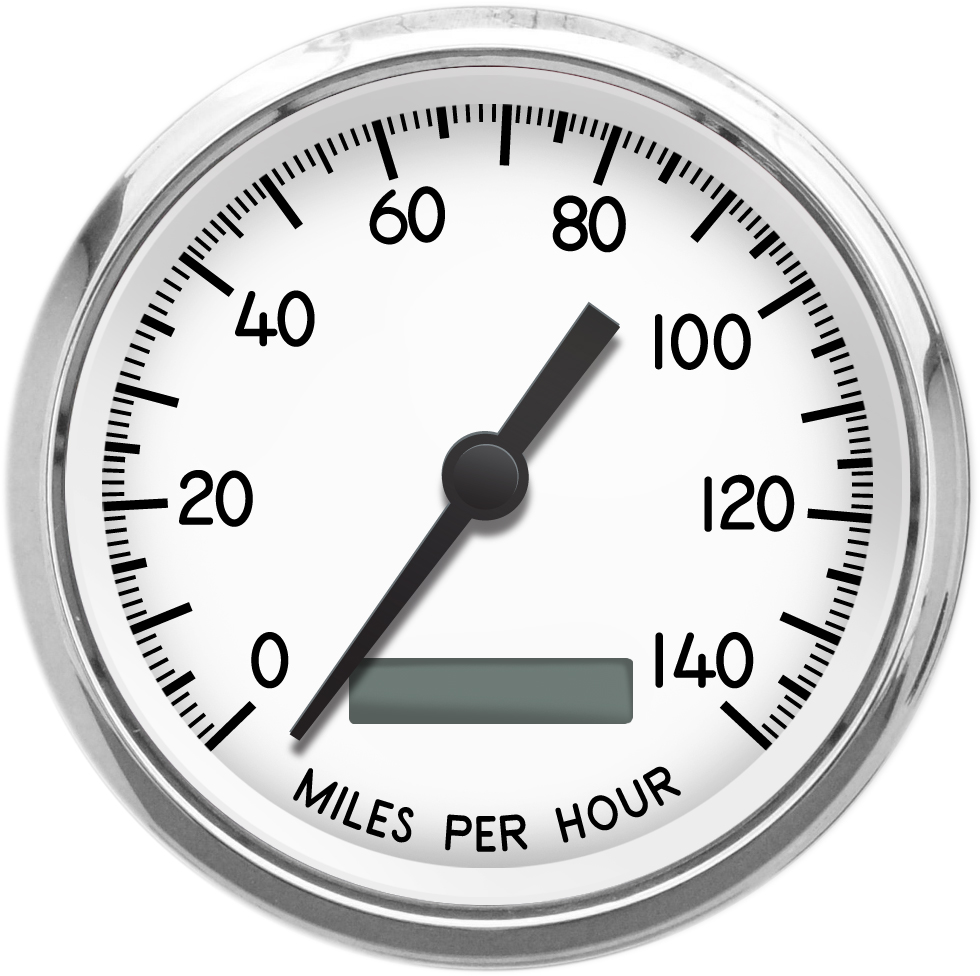

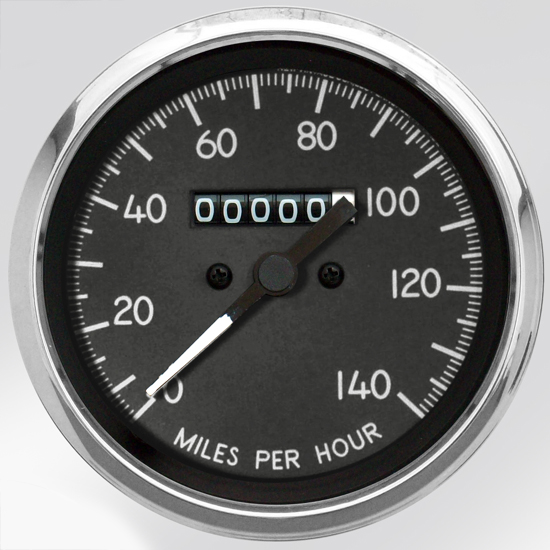

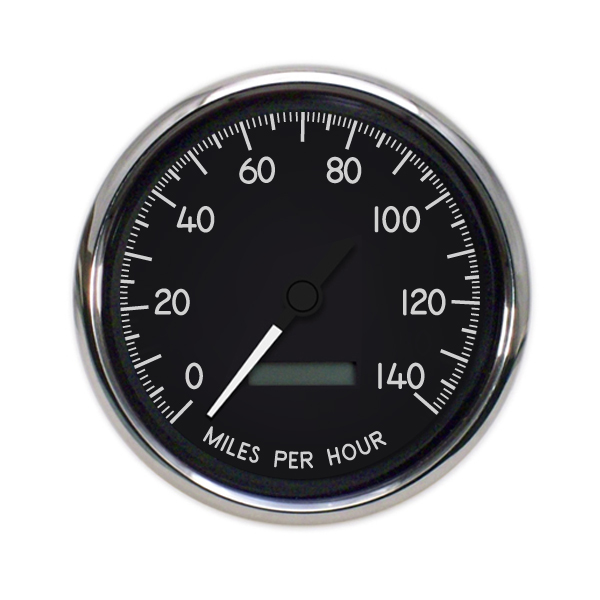

Kit includes 3-3/8 programmable speedometer 140 MPH, 2-1/16 in fuel (E-F) temperature (100-250F) volts (10-16V) pressure (0-100 PSI). Temperature. pressure and adjustable universal 240-33 ohm senders adapter bushings, speedometer wiring harness, GM/Chrysler style speedometer sender and detailed instructions included.
40514-03 1940 SERIES 6 GA KIT PROG SPEEDO WHITE
Kit includes 3-3/8 programmable speedometer 140 MPH, 2-1/16 in fuel (E-F) temperature (100-250F) volts (10-16V) pressure (0-100 PSI). Temperature. pressure and adjustable universal 240-33 ohm senders adapter bushings, speedometer wiring harness, GM/Chrysler style speedometer sender and detailed instructions included.

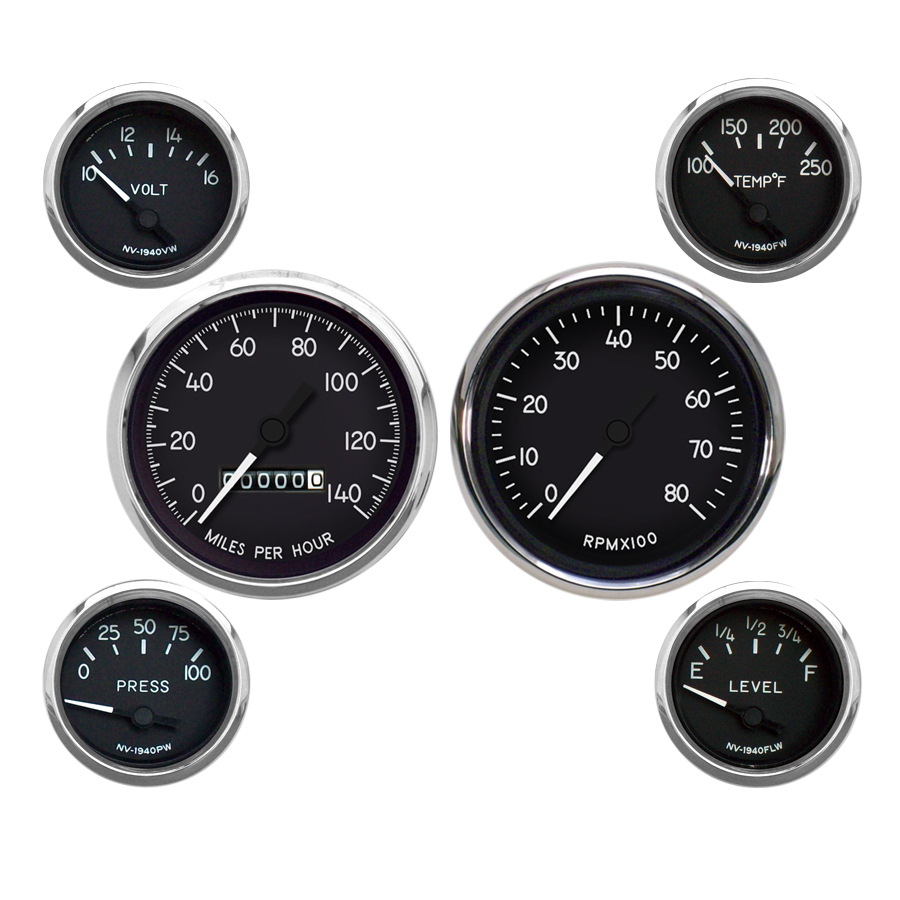

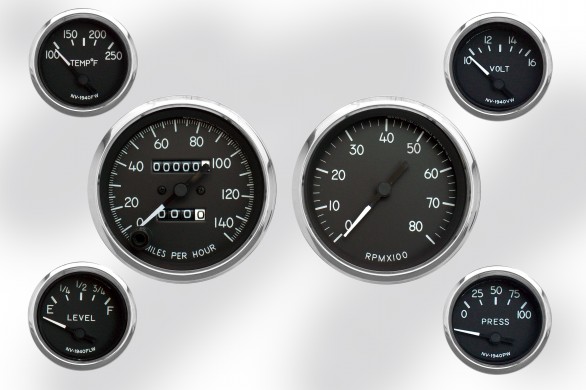

40604-01 1940 SERIES 6 GAUGE KIT BLACK

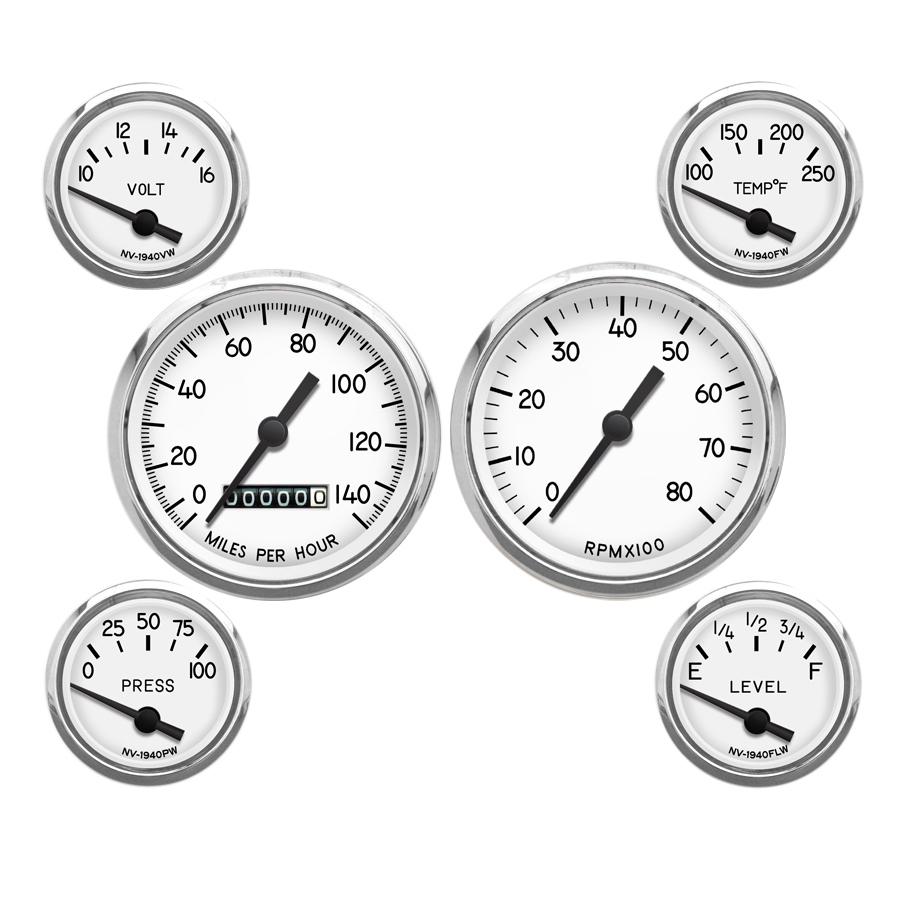

40604-03 1940 SERIES 6 GAUGE KIT WHITE

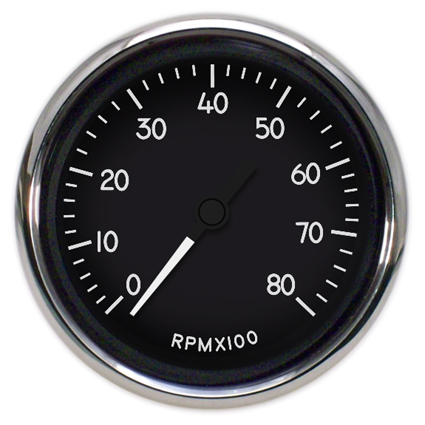

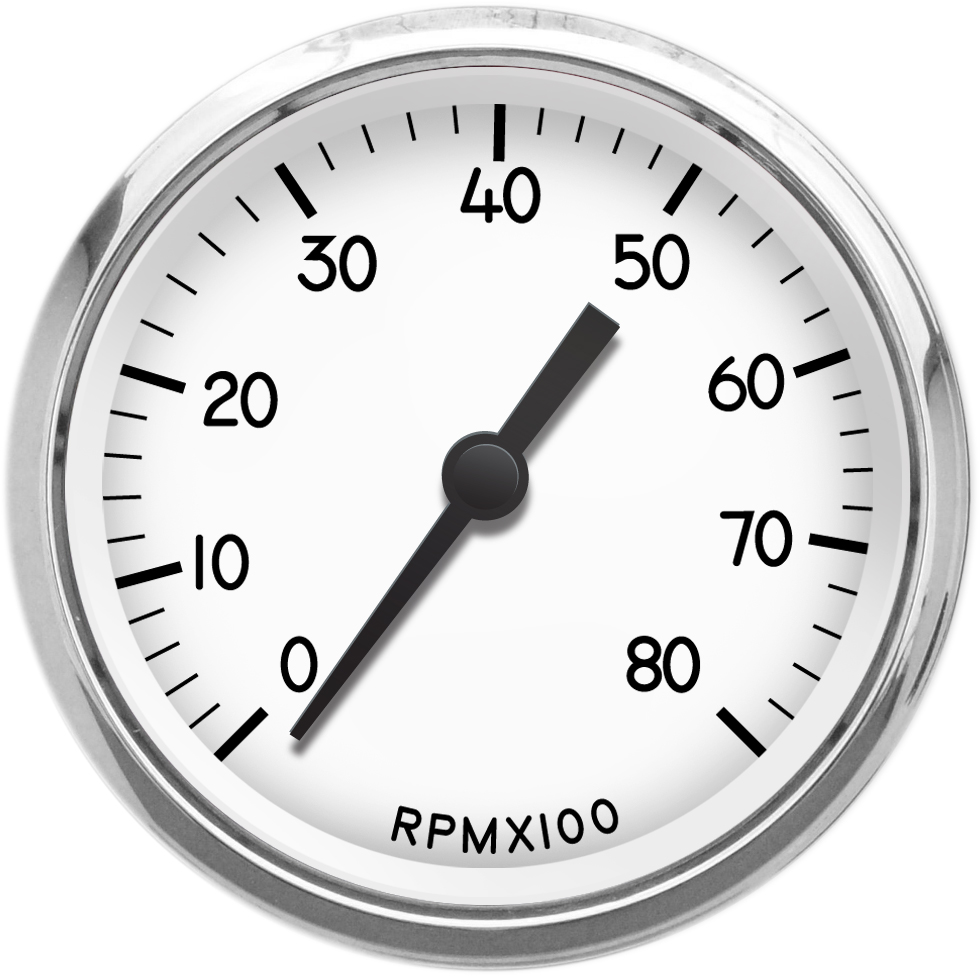

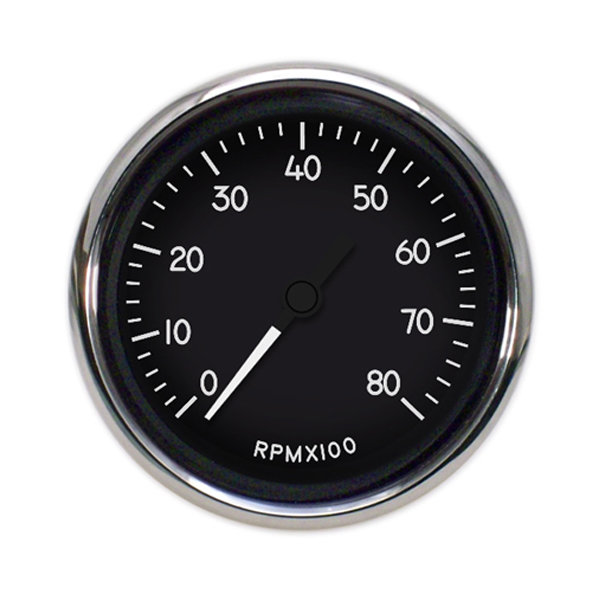

Kit includes 3-3/8 mechanical speedometer (5/8-18 thread .10404 square drive), 3-3/8 in tachometer (8000 RPM) 2-1/16 in fuel (E-F) temperature (100-250F) volts (10-16V) pressure (0-100 PSI). Temperature. pressure and adjustable universal 240-33 ohm fuel level senders adapter bushings and detailed instructions included.
40604-03 1940 SERIES 6 GAUGE KIT WHITE
Kit includes 3-3/8 mechanical speedometer (5/8-18 thread .10404 square drive), 3-3/8 in tachometer (8000 RPM) 2-1/16 in fuel (E-F) temperature (100-250F) volts (10-16V) pressure (0-100 PSI). Temperature. pressure and adjustable universal 240-33 ohm fuel level senders adapter bushings and detailed instructions included.

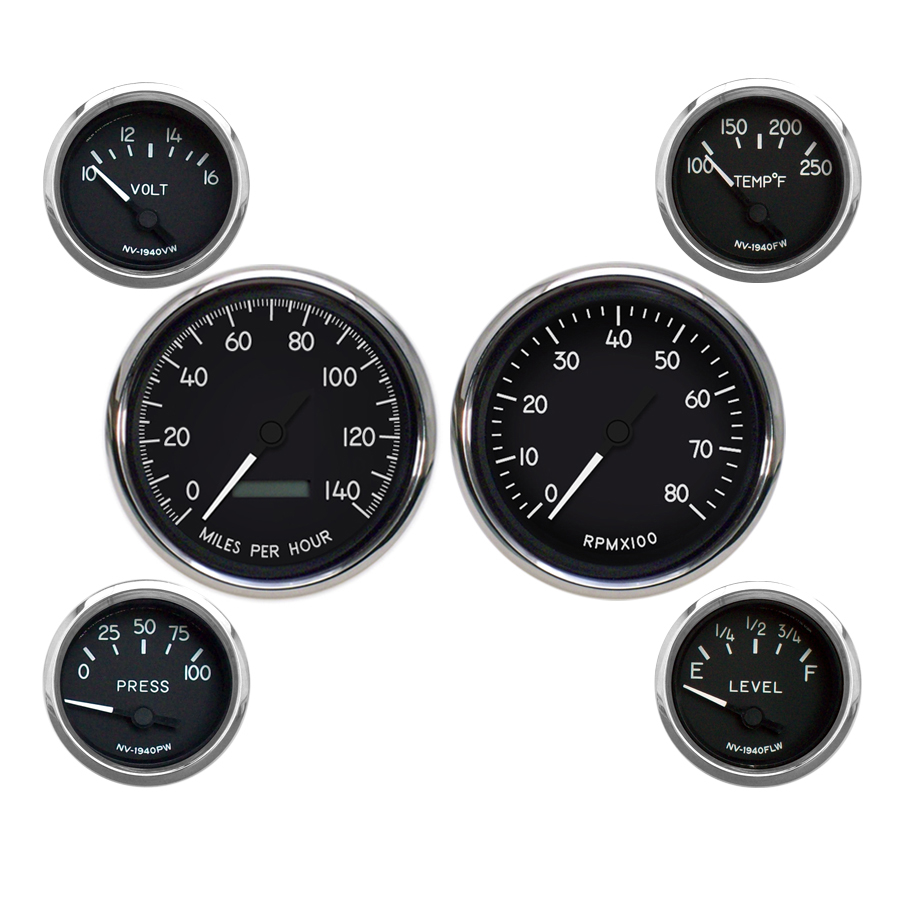

40614-01 1940 SERIES 6 GA KIT PROG SPEEDO BLACK

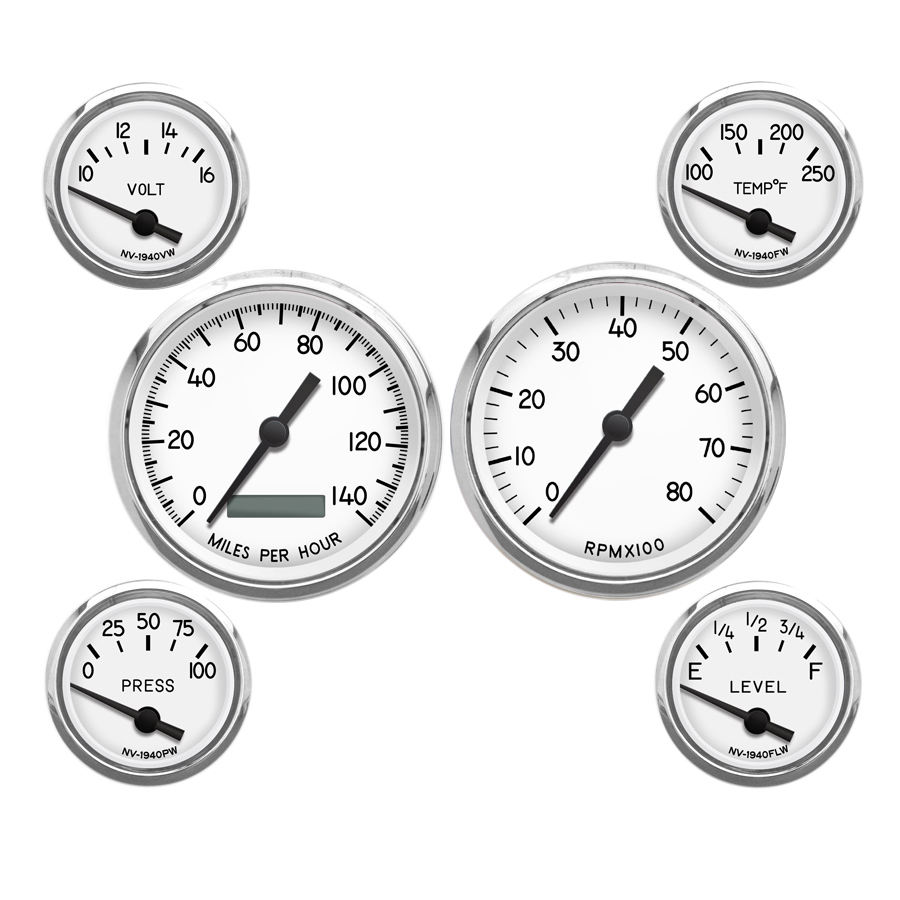

40614-03 1940 SERIES 6 GA KIT PROG SPEEDO WHITE
Kit includes 3-3/8 programmable speedometer 140 MPH, 3-3/8 in tachometer 8000 RPM, 2-1/16 in fuel (E-F) temperature (100-250F) volts (10-16V) pressure (0-100 PSI). Temperature. pressure and adjustable universal 240-33 ohm senders adapter bushings, speedometer wiring harness, GM/Chrysler style speedometer sender and detailed instructions included.
40614-03 1940 SERIES 6 GA KIT PROG SPEEDO WHITE
Kit includes 3-3/8 programmable speedometer 140 MPH, 3-3/8 in tachometer 8000 RPM, 2-1/16 in fuel (E-F) temperature (100-250F) volts (10-16V) pressure (0-100 PSI). Temperature. pressure and adjustable universal 240-33 ohm senders adapter bushings, speedometer wiring harness, GM/Chrysler style speedometer sender and detailed instructions included.

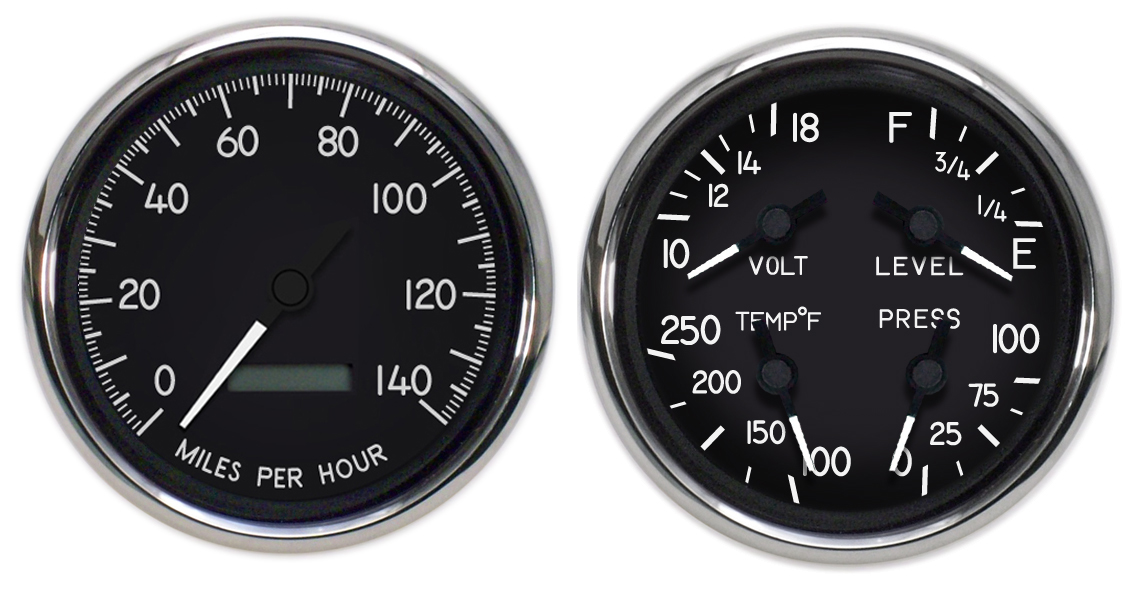

40205-01 4 3/8" 2 GAUGE KIT BLACK PROG SPEEDO

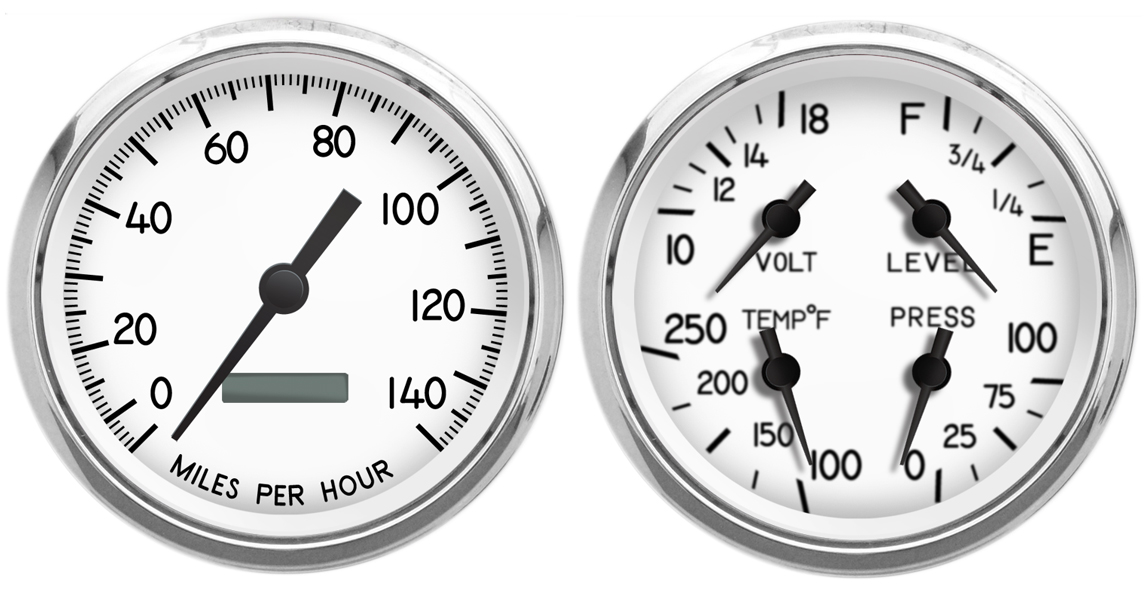

40205-03 4 3/8" 2 GAUGE KIT WHITE PROG SPEEDO
Kit includes 4-3/8 programmable speedometer 140 MPH, 4-3/8 quad gauge (100-250F water temp, 0-100PSI oil pressure, 8-18 volts Empty-Full fuel gauge, pressure, temperature and GM speedometer sender with 7/8-18 thread. Universal 240-33 ohm adjustable fuel level sender, color coded wiring harnesses and detailed instructions.
40205-03 4 3/8" 2 GAUGE KIT WHITE PROG SPEEDO
Kit includes 4-3/8 programmable speedometer 140 MPH, 4-3/8 quad gauge (100-250F water temp, 0-100PSI oil pressure, 8-18 volts Empty-Full fuel gauge, pressure, temperature and GM speedometer sender with 7/8-18 thread. Universal 240-33 ohm adjustable fuel level sender, color coded wiring harnesses and detailed instructions.

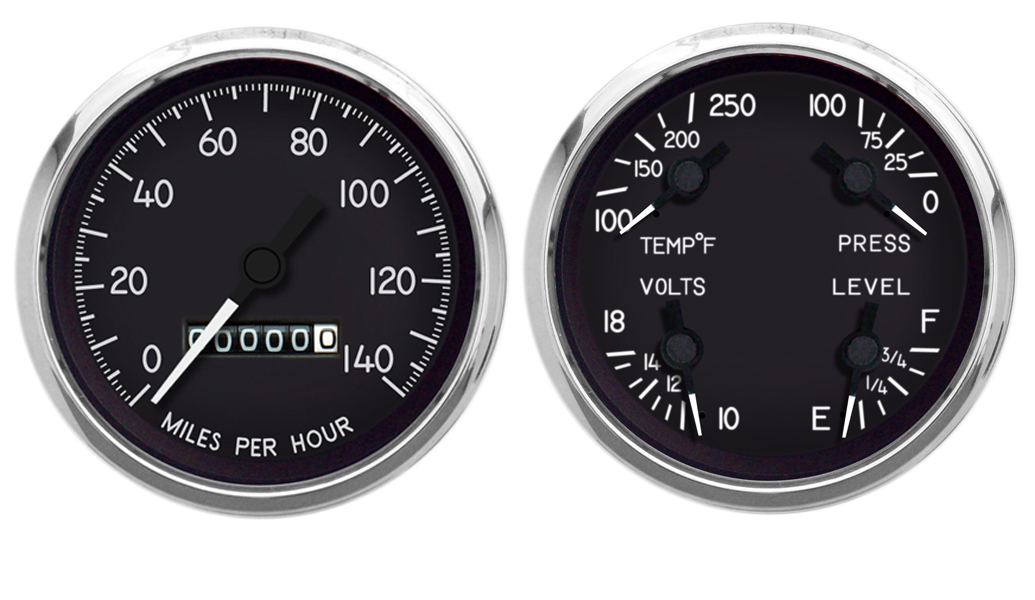

40204-01 3-3/8" 2 GAUGE SET BLACK MECH SPEEDO

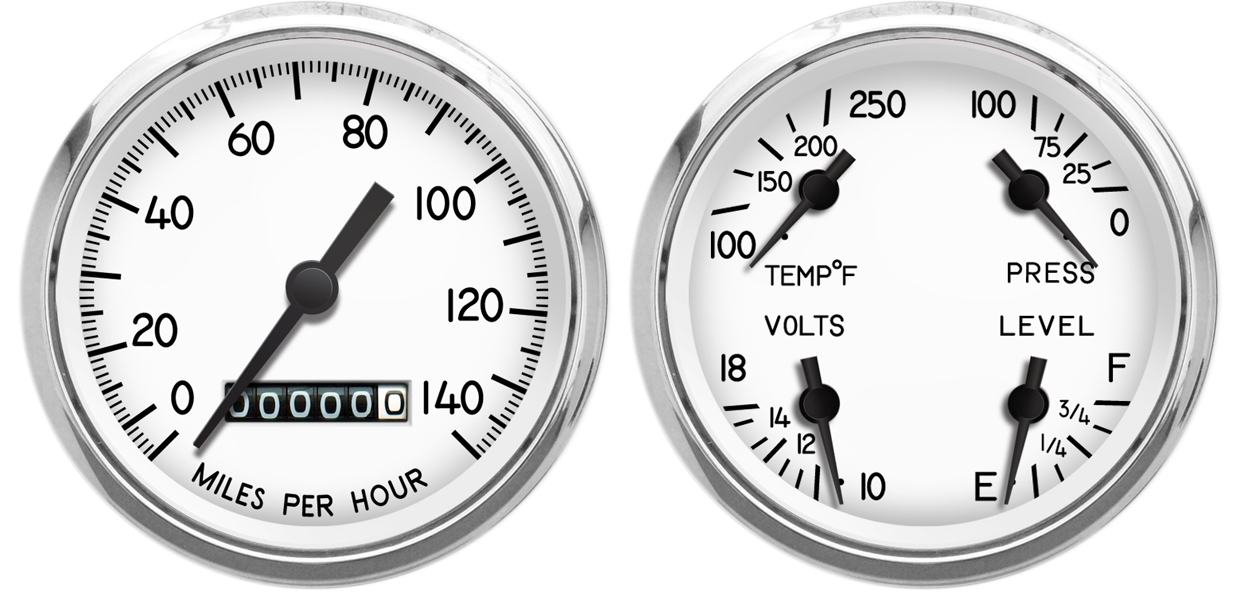

40204-03 3-3/8" 2 GAUGE SET WHITE MECH SPEEDO
Kit includes 3-3/8 mechanical speedometer 140 MPH, 3-3/8 quad gauge (100-250F water temp, 0-100PSI oil pressure, 8-18 volts Empty-Full fuel gauge, pressure, temperature sender. Universal 240-33 ohm adjustable fuel level sender and detailed instructions.
40204-03 3-3/8" 2 GAUGE SET WHITE MECH SPEEDO
Kit includes 3-3/8 mechanical speedometer 140 MPH, 3-3/8 quad gauge (100-250F water temp, 0-100PSI oil pressure, 8-18 volts Empty-Full fuel gauge, pressure, temperature sender. Universal 240-33 ohm adjustable fuel level sender and detailed instructions.

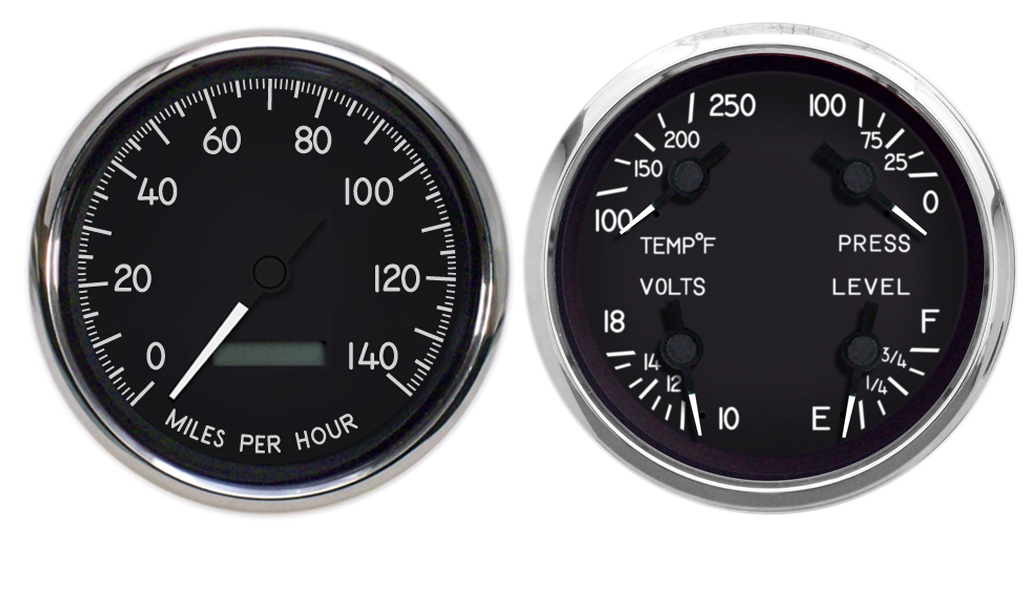

40214-01 3-3/8" 2 GAUGE SET BLACK PROG SPEEDO

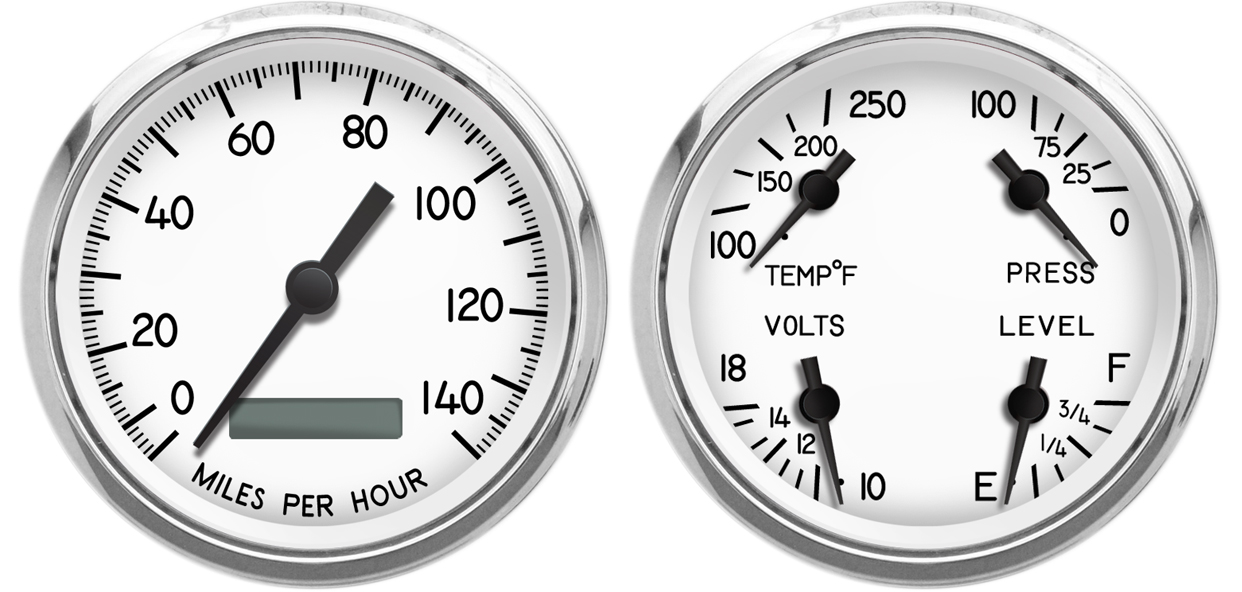

40214-03 3-3/8" 2 GAUGE SET WHITE PROG SPEEDO
Kit includes 3-3/8 programmable speedometer 140 MPH, 3-3/8 quad gauge (100-250F water temp, 0-100PSI oil pressure, 8-18 volts Empty-Full fuel gauge, pressure, temperature and GM speedometer sender with 7/8-18 thread. Universal 240-33 ohm adjustable fuel level sender, color coded wiring harness and detailed instructions.
40214-03 3-3/8" 2 GAUGE SET WHITE PROG SPEEDO
Kit includes 3-3/8 programmable speedometer 140 MPH, 3-3/8 quad gauge (100-250F water temp, 0-100PSI oil pressure, 8-18 volts Empty-Full fuel gauge, pressure, temperature and GM speedometer sender with 7/8-18 thread. Universal 240-33 ohm adjustable fuel level sender, color coded wiring harness and detailed instructions.

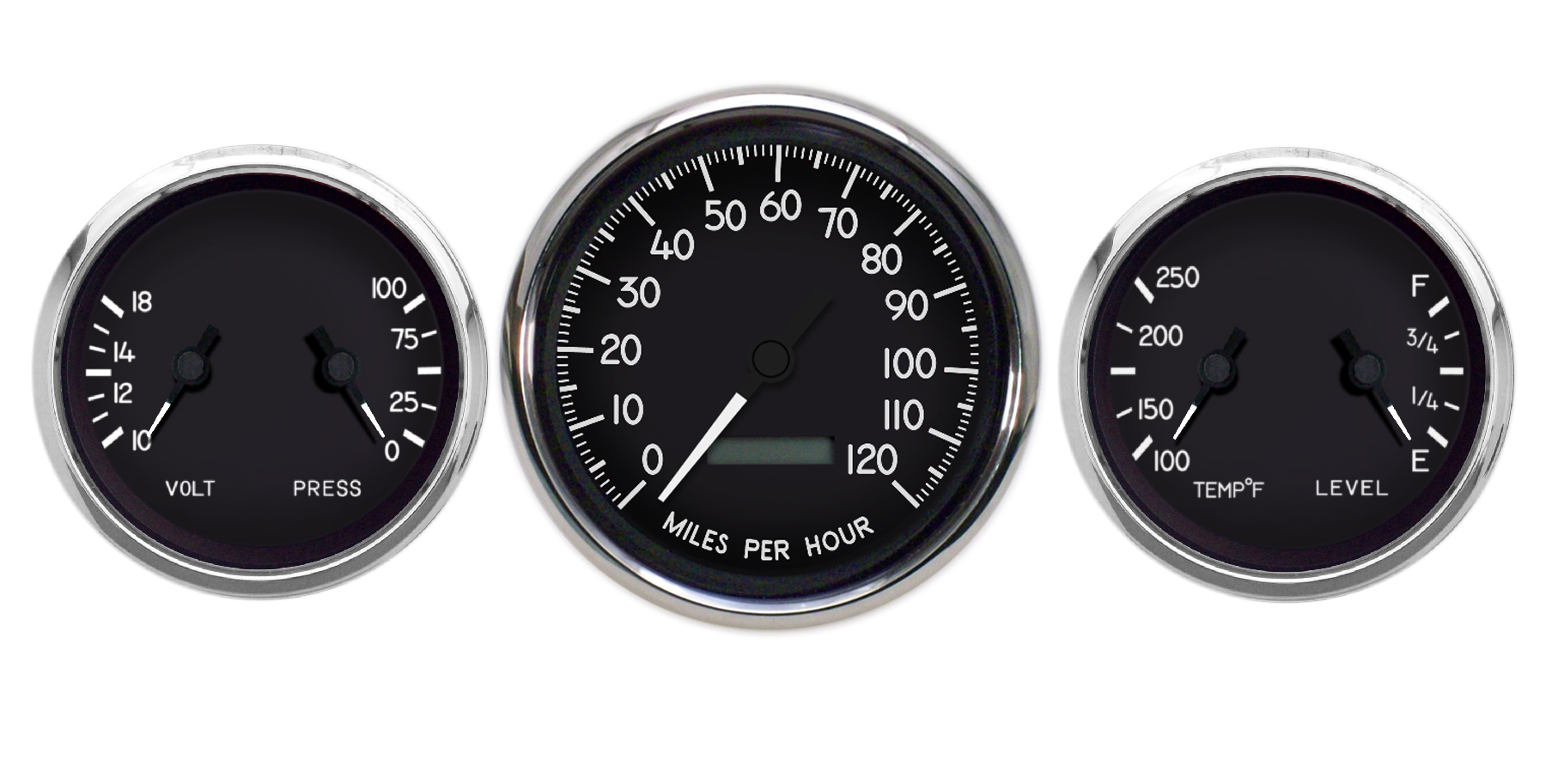

40335-01 1940 3 GA KIT 4-3/8 SPEEDO, 3-3/8 DUALS BLACK

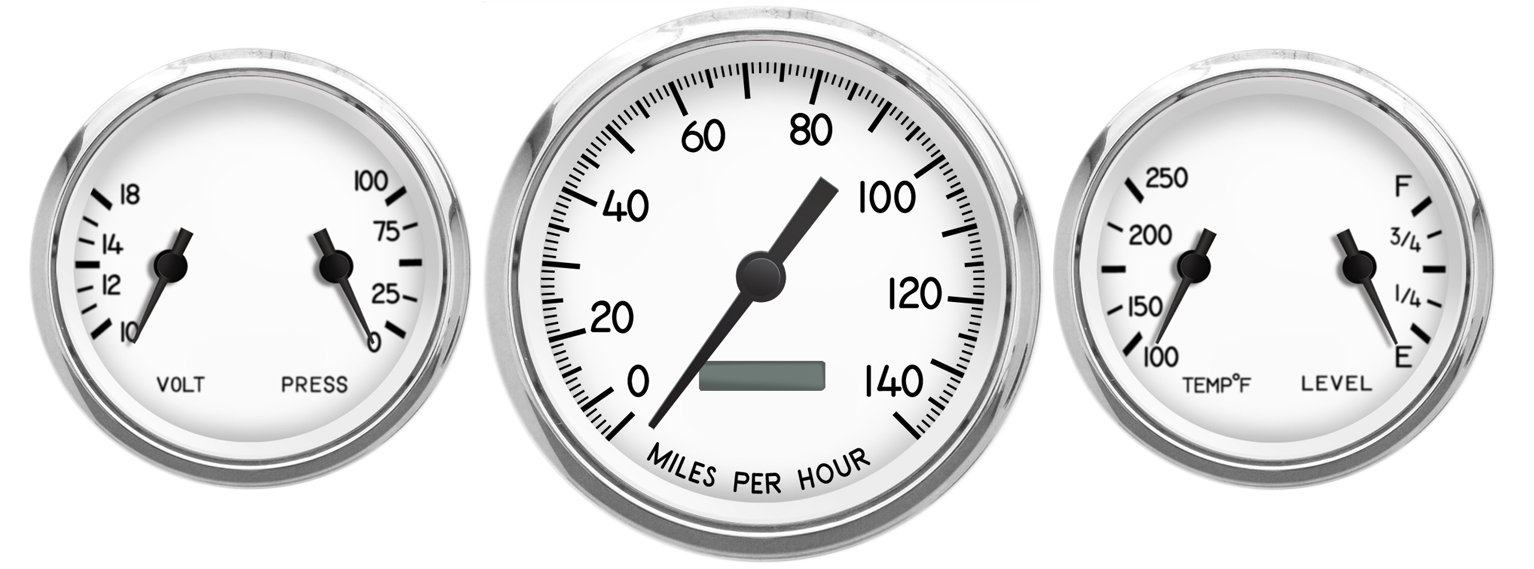

40335-03 1940 3 GA KIT 4-3/8 SPEEDO, 3-3/8 DUALS WHITE
Kit includes 4-3/8 programmable speedometer, 2 EA 3-3/8 inch dual (water temp 100-250F, volts 8-18, oil pressure 100 PSI, fuel Empty/Full) pressure, temperature, universal adjustable 240-33ohm fuel sender and GM speedometer sender with 7/8-18 thread. Universal 240-33 ohm adjustable fuel level sender, color coded wiring harness and detailed instructions.
40335-03 1940 3 GA KIT 4-3/8 SPEEDO, 3-3/8 DUALS WHITE
Kit includes 4-3/8 programmable speedometer, 2 EA 3-3/8 inch dual (water temp 100-250F, volts 8-18, oil pressure 100 PSI, fuel Empty/Full) pressure, temperature, universal adjustable 240-33ohm fuel sender and GM speedometer sender with 7/8-18 thread. Universal 240-33 ohm adjustable fuel level sender, color coded wiring harness and detailed instructions.

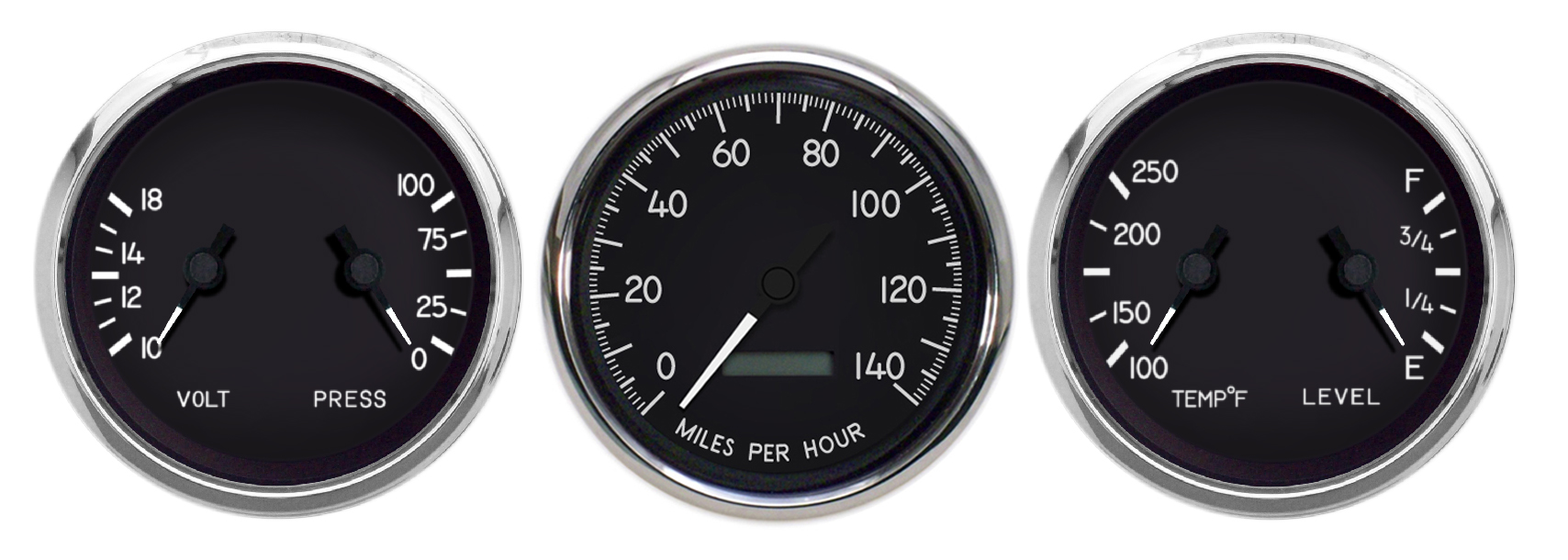

40336-01 1940 3 GA 3-3/8 PROG SPDO, DUAL GAUGES BLACK

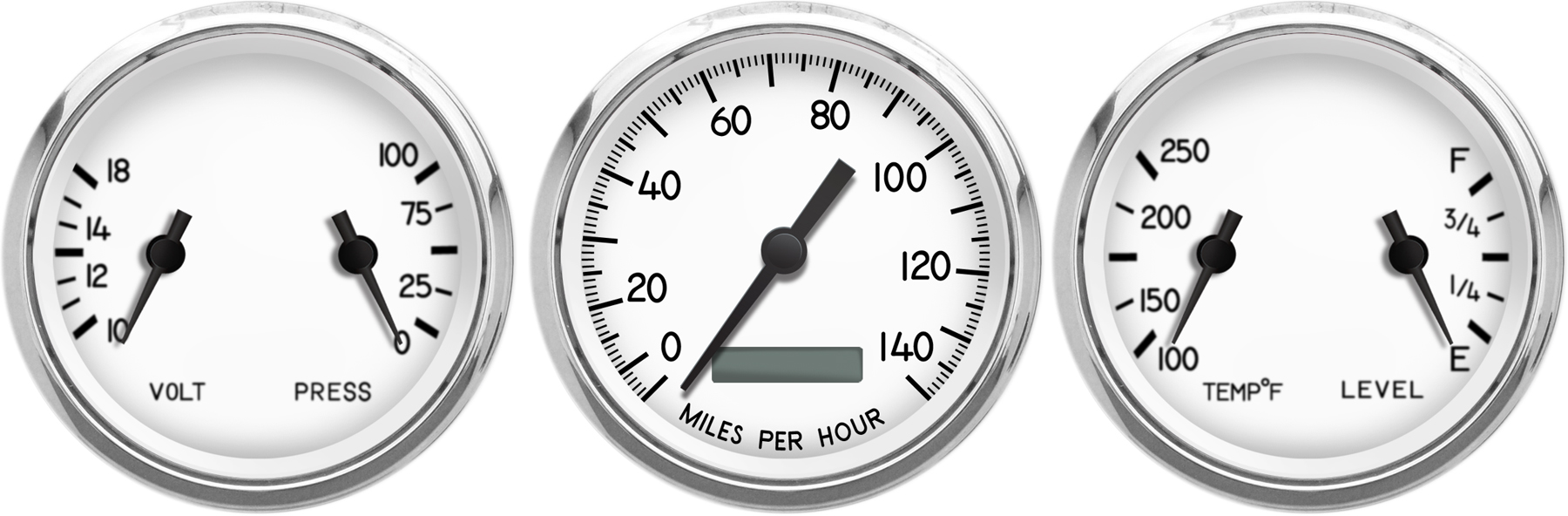

40336-03 1940 3 GA 3-3/8 PROG SPDO, DUAL GAUGES WHITE
Kit includes 3-3/8 programmable speedometer, 2 EA 3-3/8 inch dual (water temp 100-250F, volts 8-18, oil pressure 100 PSI, fuel Empty/Full) pressure, temperature, universal adjustable 240-33ohm fuel sender and GM speedometer sender with 7/8-18 thread. Universal 240-33 ohm adjustable fuel level sender, color coded wiring harness and detailed instructions.
40336-03 1940 3 GA 3-3/8 PROG SPDO, DUAL GAUGES WHITE
Kit includes 3-3/8 programmable speedometer, 2 EA 3-3/8 inch dual (water temp 100-250F, volts 8-18, oil pressure 100 PSI, fuel Empty/Full) pressure, temperature, universal adjustable 240-33ohm fuel sender and GM speedometer sender with 7/8-18 thread. Universal 240-33 ohm adjustable fuel level sender, color coded wiring harness and detailed instructions.

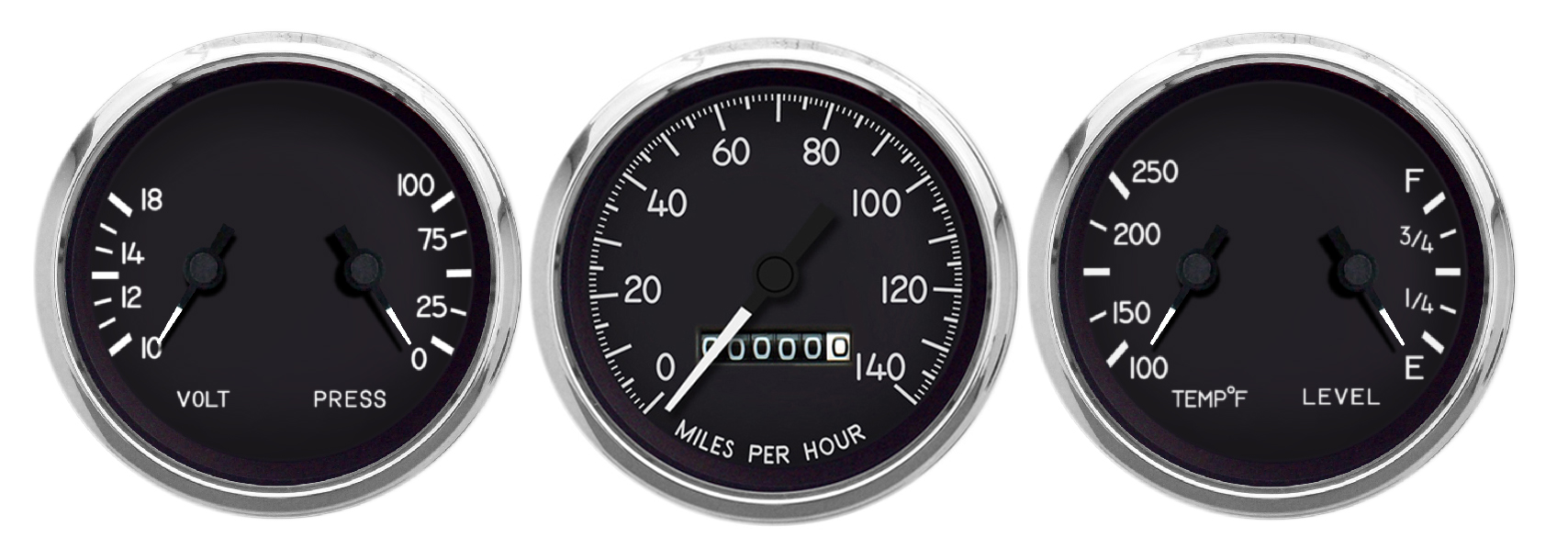

40306-01 1940 3 GA 3-3/8 MECH SPDO, DUAL GAUGES BLACK

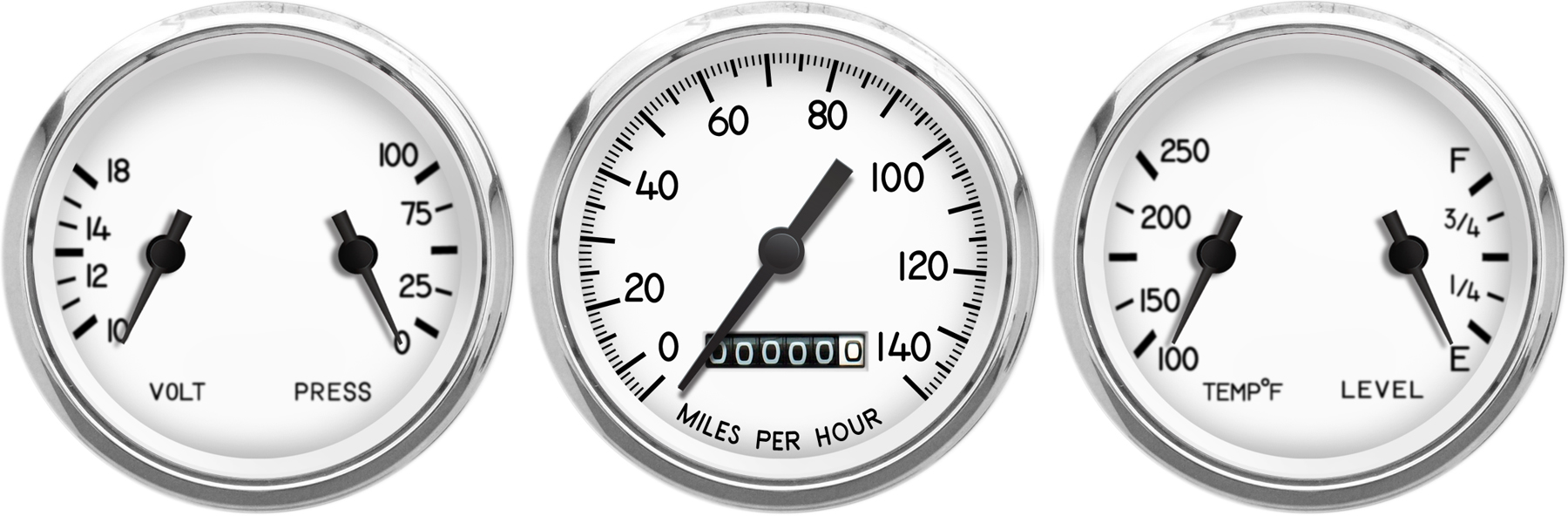

40306-03 1940 3 GA 3-3/8 MECH SPDO, DUAL GAUGES WHITE
Kit includes 3-3/8 mechanical speedometer, 2 EA 3-3/8 inch dual (water temp 100-250F, volts 8-18, oil pressure 100 PSI, fuel Empty/Full) pressure, temperature and universal adjustable 240-33ohm fuel sender. Universal 240-33 ohm adjustable fuel level sender, color coded wiring harness and detailed instructions.
40306-03 1940 3 GA 3-3/8 MECH SPDO, DUAL GAUGES WHITE
Kit includes 3-3/8 mechanical speedometer, 2 EA 3-3/8 inch dual (water temp 100-250F, volts 8-18, oil pressure 100 PSI, fuel Empty/Full) pressure, temperature and universal adjustable 240-33ohm fuel sender. Universal 240-33 ohm adjustable fuel level sender, color coded wiring harness and detailed instructions.
