1969 SERIES
NEW VINTAGE 1969 SERIES
The first true 60 themed gauge set on the market with period look and modern stepper motor technology.4-3/8", 3-3/8” and 2-1/16” gauge fit aftermarket dash panels for a professional installation.
Get the best of both worlds-classic looks with modern technology.
Available in kits, individuals or part of direct-fit packages.


1969 SERIES 3-IN-1 PACKAGES
Our new 3-1 sets pack all the features you want in a compact, great looking package.  Backlit dials and pointers, integrated warning lamps and signals.  Kits include pressure sender, temperature sender, bushings, color-coded snap-in wiring harnesses, backclamps and instruction booklet.  240-33 kits include universal fuel sender, 0-90 and 73-10 kits have factory match fuel gauge-works with your exixting fuel tank/sender. Need more?  Add-on a oil temp, boost, air/fuel gauge below for a complete package.
* may require speedometer sender-see accessory section

69253-01  69 3-1 GAUGE KIT 4-3/8" 0-90 GM FUEL
69254-01  1969   3-1 KIT 4-3/8" 240-33  FUELW/SENDER
69255-01  1969  3-1 KIT 4-3/8" 73-10 FORD/CHRY FUEL








NVU 1969 SERIES 6 GA KITS 3-3/8"

69649-01
6 gauge kit components: 3-3/8” speedometer 0-140 MPH, 3-3/8” tachometer 0-8,000 RPM ,Fuel gauge with user selectable ranges: 0-90 (GM), 73-10 (Ford), 240-33 (universal), 16-158 (Ford late) ,Water temperature gauge ,Oil pressure gauge ,Voltmeter ,Bushing kit ,Programming button ,Spin-on back-clamps ,Wiring harnesses ,Temperature sender ,Pressure sender ,*Fuel and speed senders may be required, check your application


69649-01M
6 gauge kit components: 3-3/8” speedometer 0-240 KPH, 3-3/8” tachometer 0-8,000 RPM ,Fuel gauge with user selectable ranges: 0-90 (GM), 73-10 (Ford), 240-33 (universal), 16-158 (Ford late) ,Water temperature gauge ,Oil pressure gauge ,Voltmeter ,Bushing kit ,Programming button ,Spin-on back-clamps ,Wiring harnesses ,Temperature sender ,Pressure sender ,*Fuel and speed senders may be required, check your application

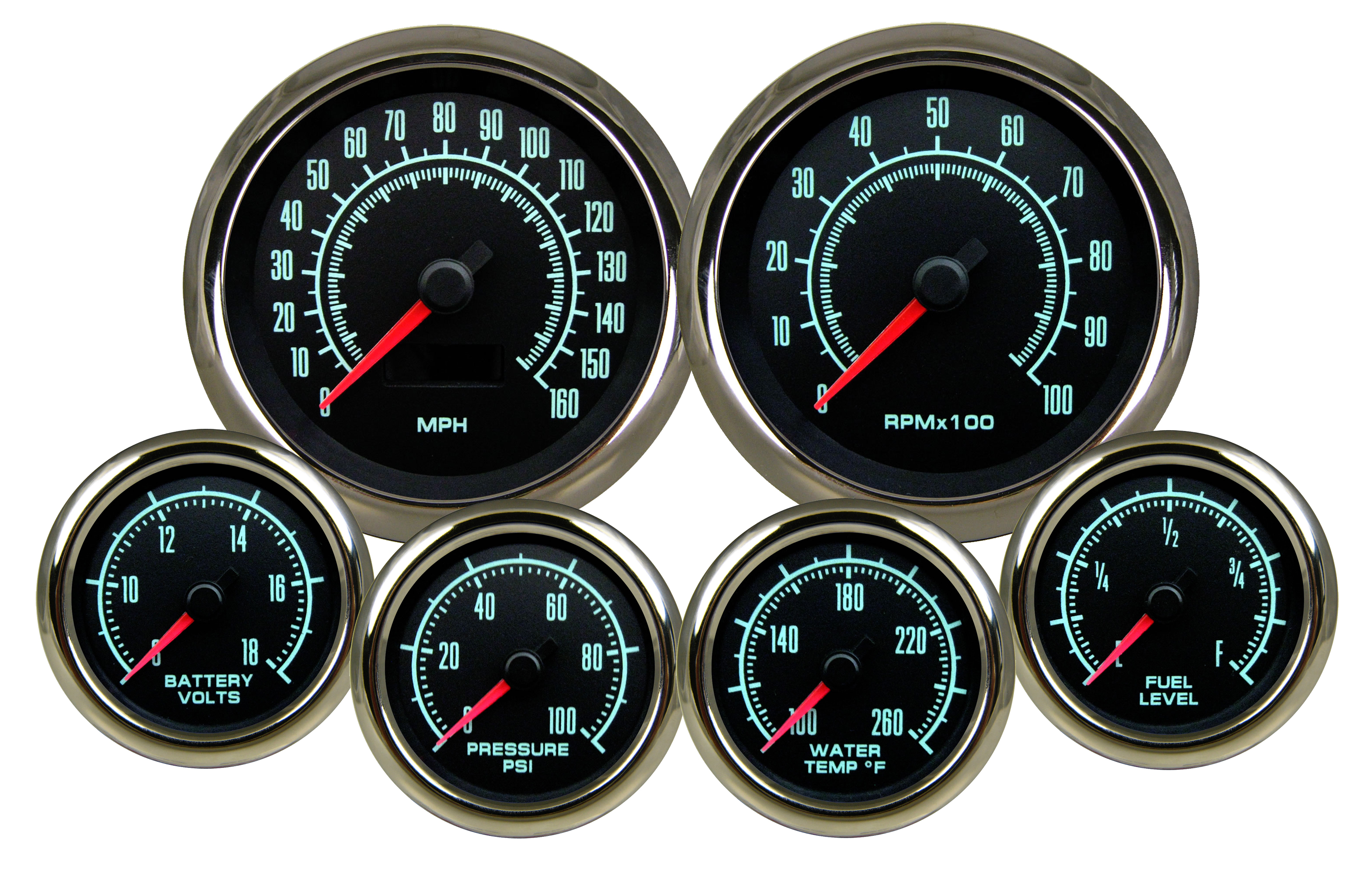

NVU 1969 SERIES 6 GA KITS 4-3/8"

69659-01
6 gauge kit components: 4-3/8” speedometer 0-140 MPH, 4-3/8” tachometer 0-8,000 RPM ,Fuel gauge with user selectable ranges: 0-90 (GM), 73-10 (Ford), 240-33 (universal), 16-158 (Ford late) ,Water temperature gauge ,Oil pressure gauge ,Voltmeter ,Bushing kit ,Programming button ,Spin-on back-clamps ,Wiring harnesses ,Temperature sender ,Pressure sender ,*Fuel and speed senders may be required, check your application

69659-01M
6 gauge kit components: 4-3/8” speedometer 0-240 KPH, 4-3/8” tachometer 0-8,000 RPM ,Fuel gauge with user selectable ranges: 0-90 (GM), 73-10 (Ford), 240-33 (universal), 16-158 (Ford late) ,Water temperature gauge ,Oil pressure gauge ,Voltmeter ,Bushing kit ,Programming button ,Spin-on back-clamps ,Wiring harnesses ,Temperature sender ,Pressure sender ,*Fuel and speed senders may be required, check your application







INDIVIDUAL GAUGES

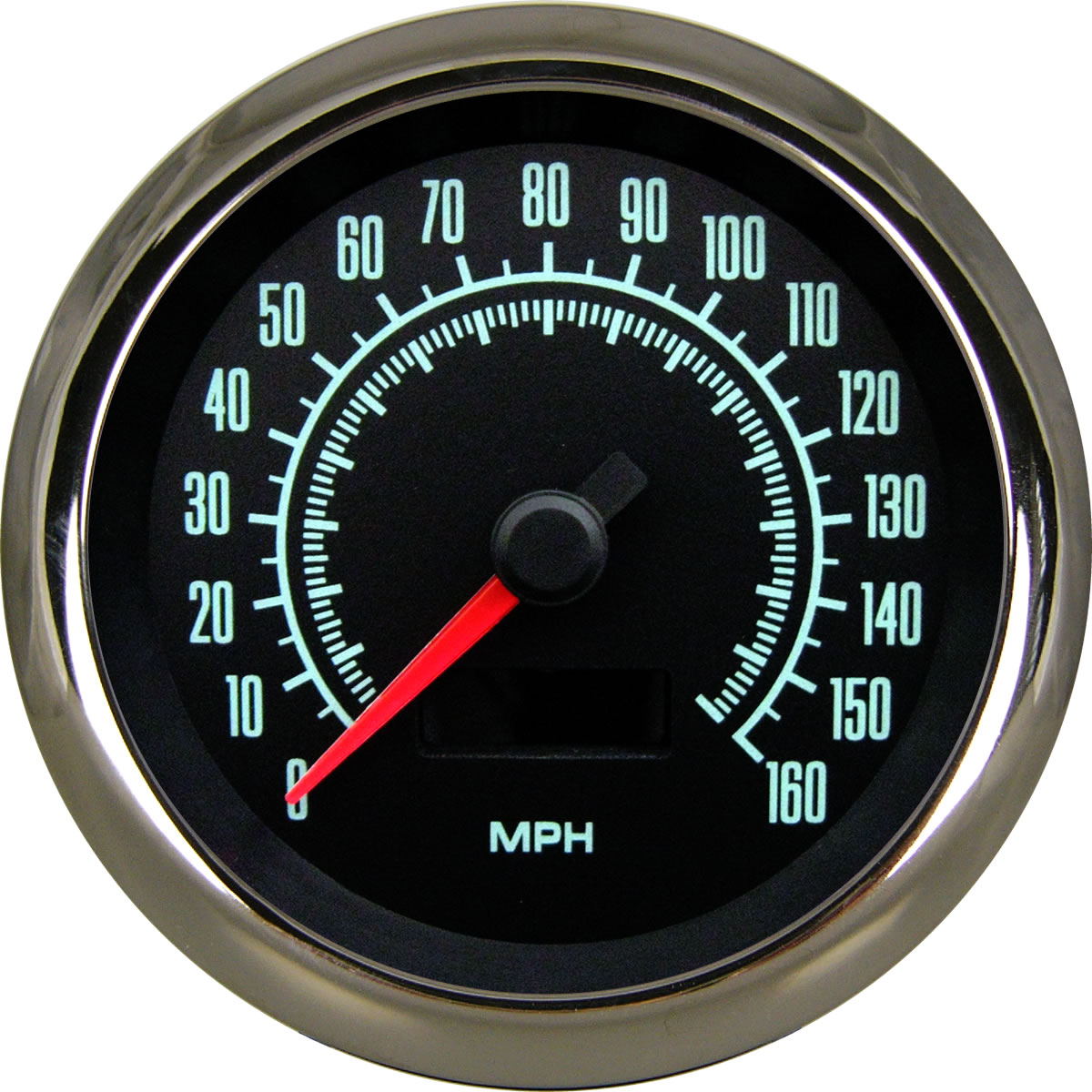

GENII Speedometers operate from any speed signal from 3,000-64,000 PPM , OE, aftermarket or GPS (sender not included, check your application) and are easily programmed by entering calibration mode and driving a mile, that’s it! LED backlit dials for easy viewing at night while retaining the style you have come to expect from NVU. Kit includes: 3-3/8” speedometer, wiring harness and plug, spin-on back clamp, programming button and detailed instructions.

69140-01  1969 SERIES 3-3/8 SPEEDOMETER 140 MPH
69140-01M  1969 SERIES 3-3/8 SPEEDOMETER 240 kph

69150-01  69 SERIES 4-3/8” SPEEDOMETER 140 MPH
69150-01M 69 SERIES 4-3/8” SPEEDOMETER 240 KPH

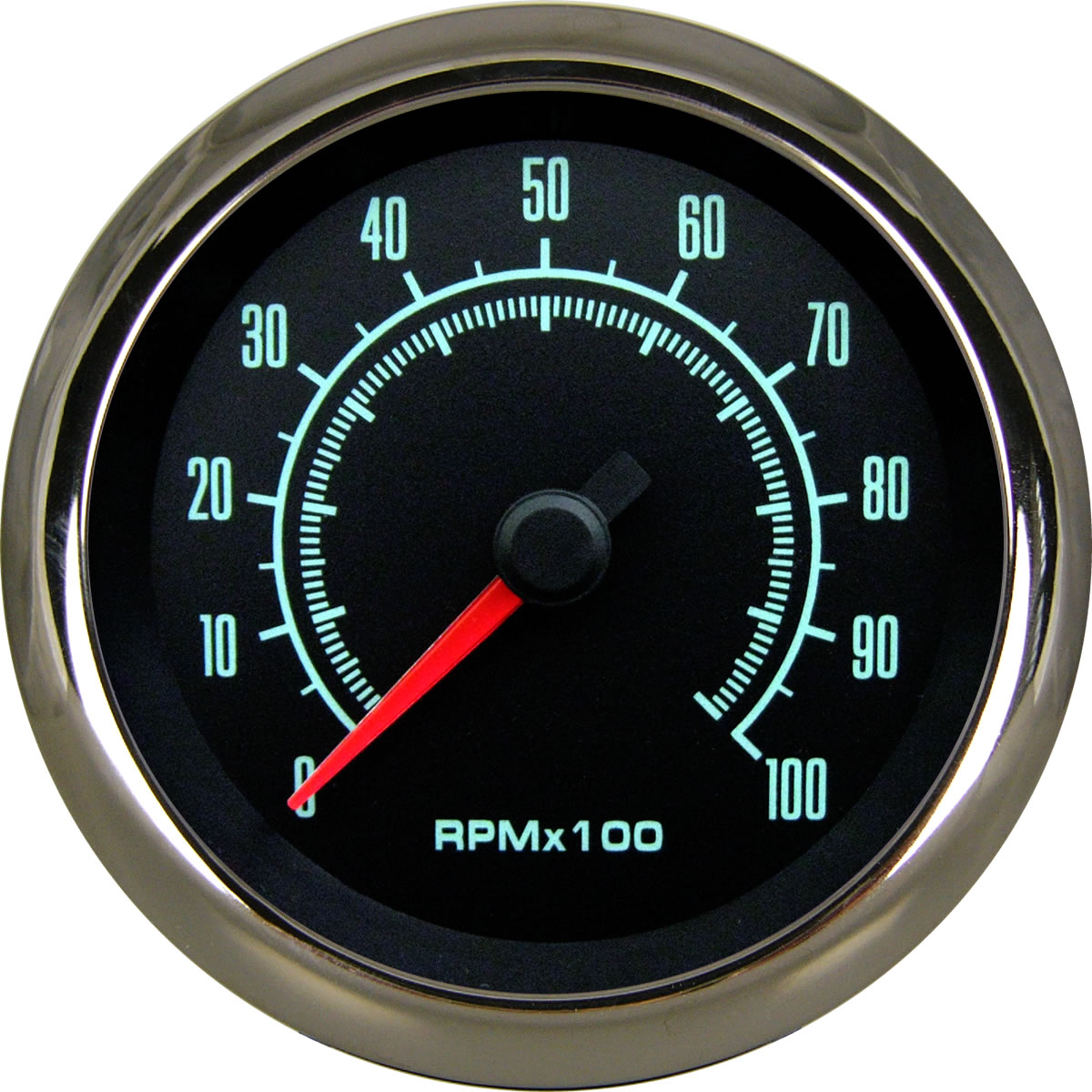

NVU GENII programmable tachometers are the most flexible instruments available today.  Easily programmed to any input pulse count. Can be used on any ignition system: points, electronic, PCM, CDI, MSD, alternator, crank trigger, anything that sends a signal. Simply set the pulses per revolution and the tach is set for your application. LED backlighting for easy viewing at night.  User settable outputs for shift lamps and triggers are also included. Includes: 3-3/8” tachometer, spin-on back clamp, programming button, detailed instructions, wiring harness and plug.
69141-01   1969 SRIES 3-3/8 TACHOMETER 8K
69151-01  69 SERIES 4-3/8 TACHOMETER 4-3/8” 8K

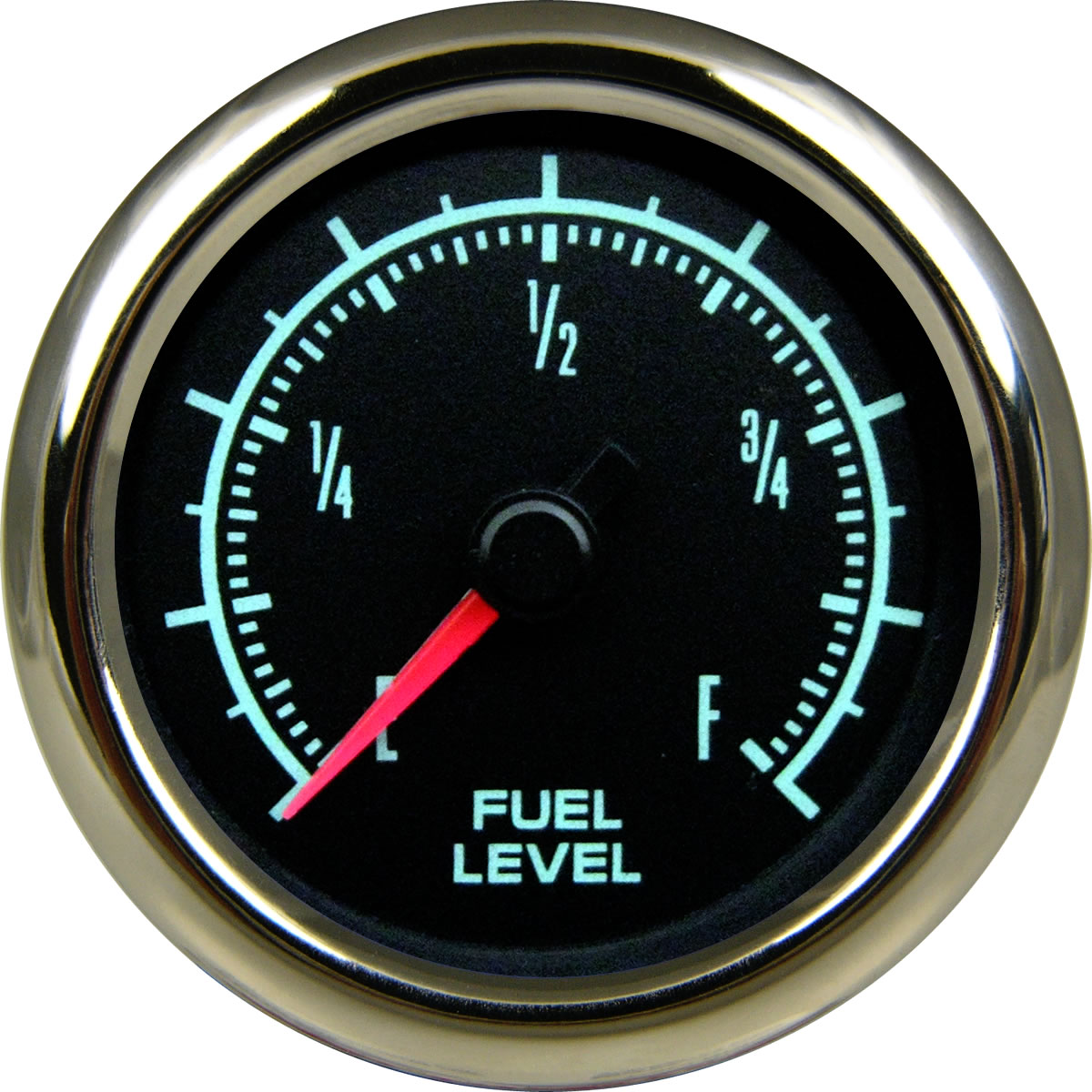

GEN II fuel gauges feature user selectable inputs, can be used on a wide range of OE and aftermarket fuel senders, no need to drop the tank. :0-90 (GM), 73-10 (Ford), 240-33 (universal), 16-158 (Ford late). LED backlighting and full sweep readout with great looks you have come to expect from NVU.
69128-01  1969 SERIES FUEL LEVEL GAUGE PROGRAMMABLE




GENII oil pressure gauges feature LED backlit dials and pointers with full sweep analog readout for precise readings.  Kits include gauge, spin-on back clamp, 240-33 ohm, 0-100 PSI pressure sender (1/8-27 NPT thread) and detailed instructions. Gauge reads 0-100 PSI.
69126-01   1969 SERIES 0-100 PSI OIL PRESSURE KIT

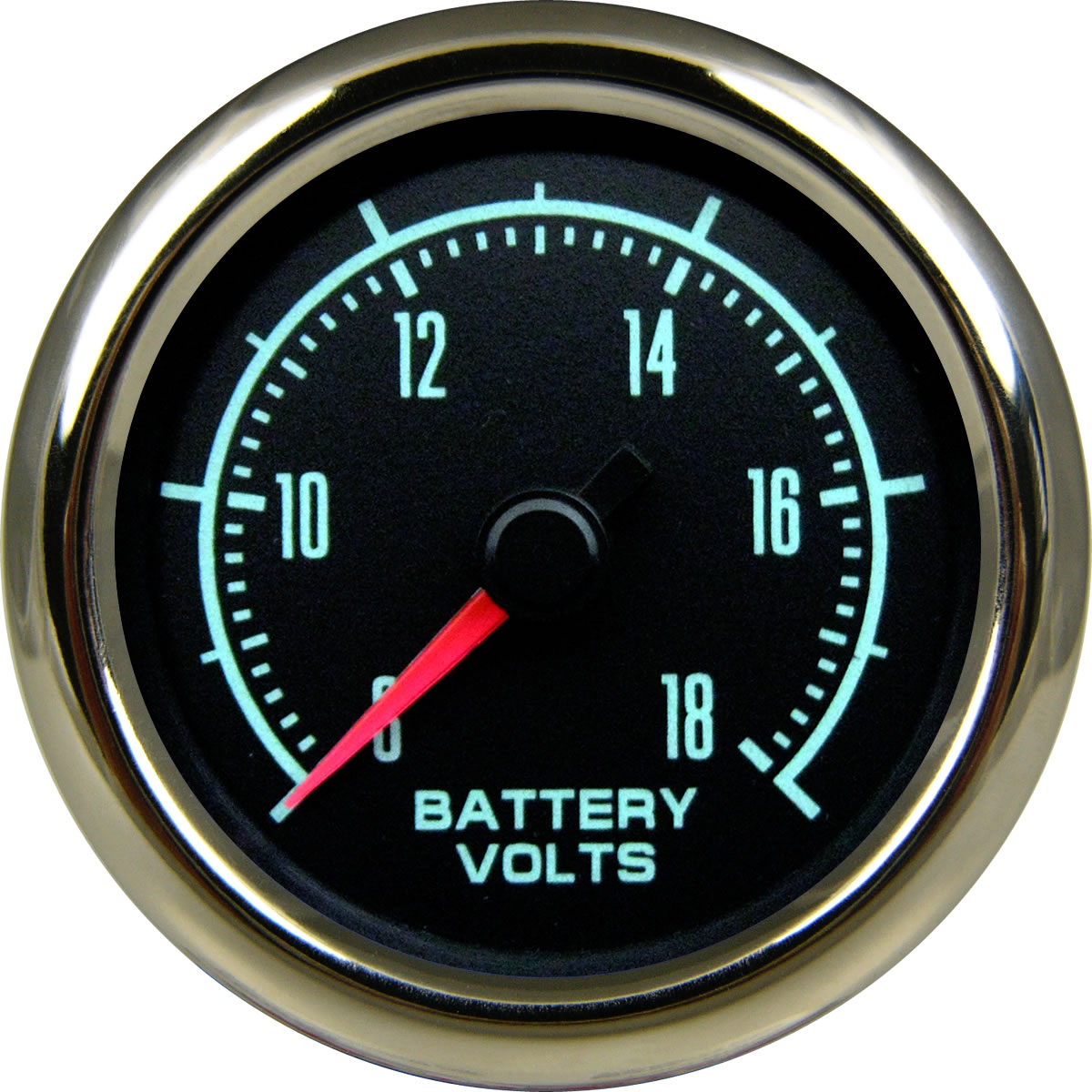

GENII voltmeters feature LED backlit dials and pointers with full sweep analog readout for precise readings. Easily installs with 4 wires.  Kits include gauge, spin-on back clamp, sender and detailed instructions. Reads 7-17 volts

69123-01   1969 SERIES VOLTMETER

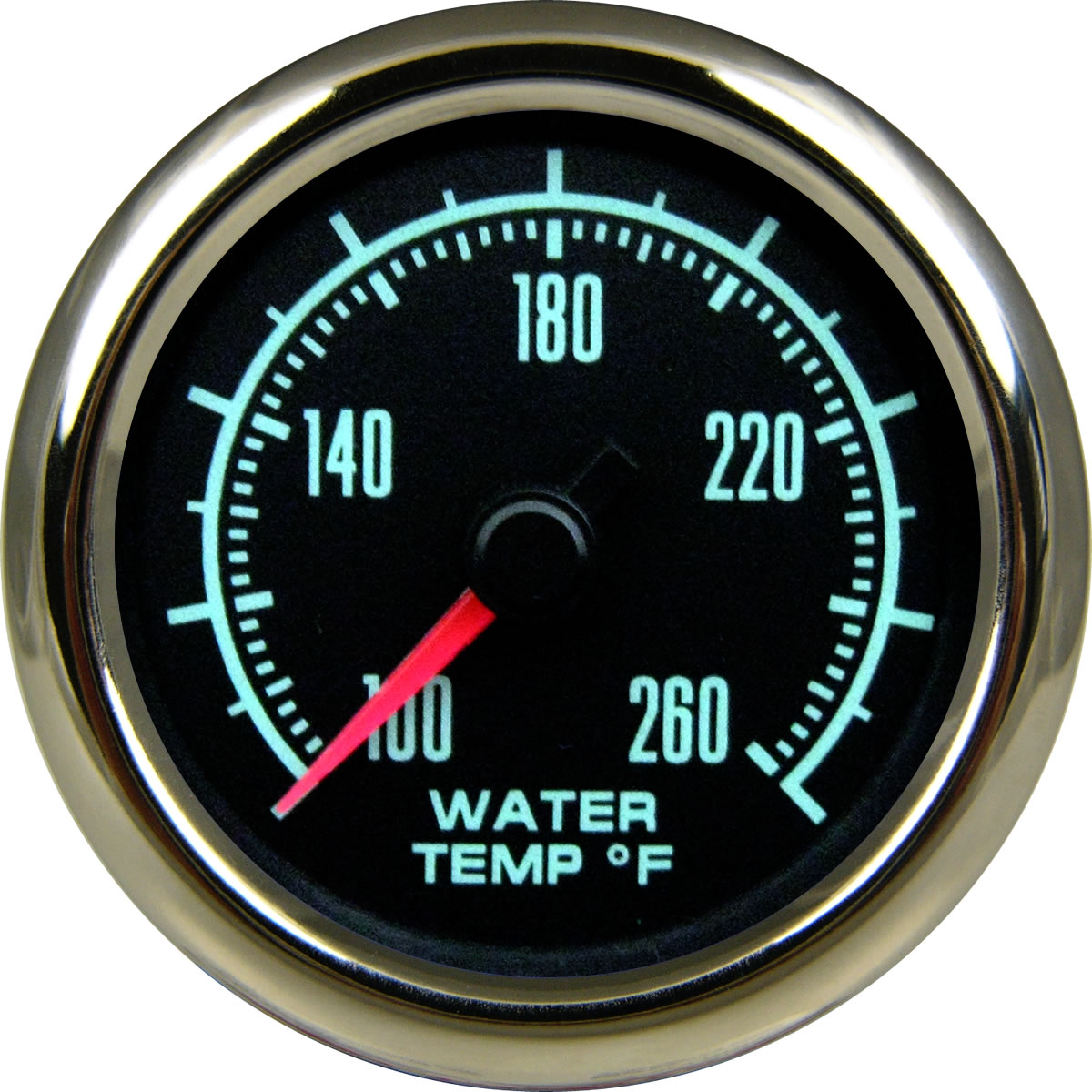

GENII temperature  gauges feature LED backlit dials and pointers with full sweep analog readout for precise readings.  Kits include gauge, spin-on back clamp, our hi-match temperature sender (1/8-27 NPT thread)  and detailed instructions. Temperature readings from 100F-280F -OR- 140-320F.

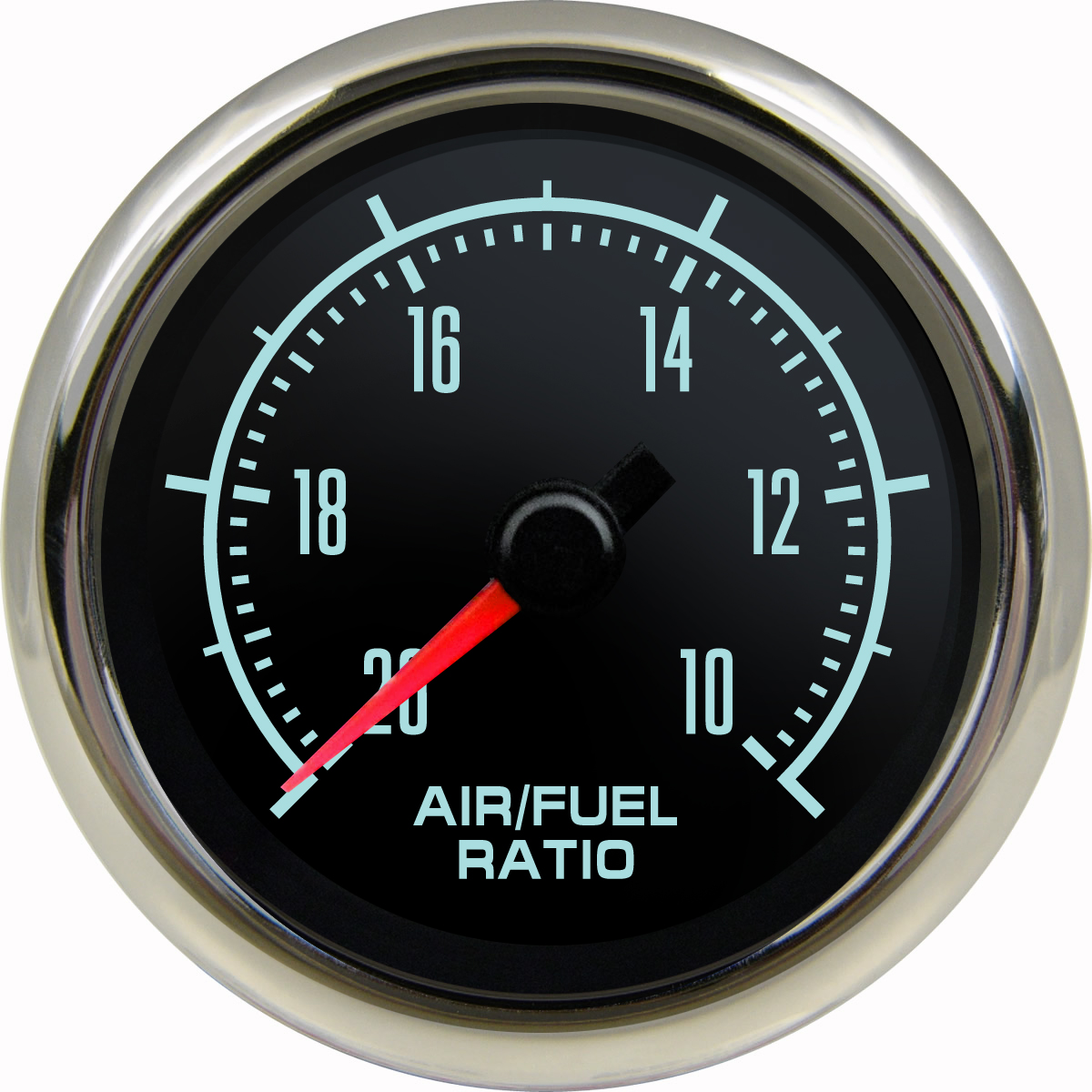

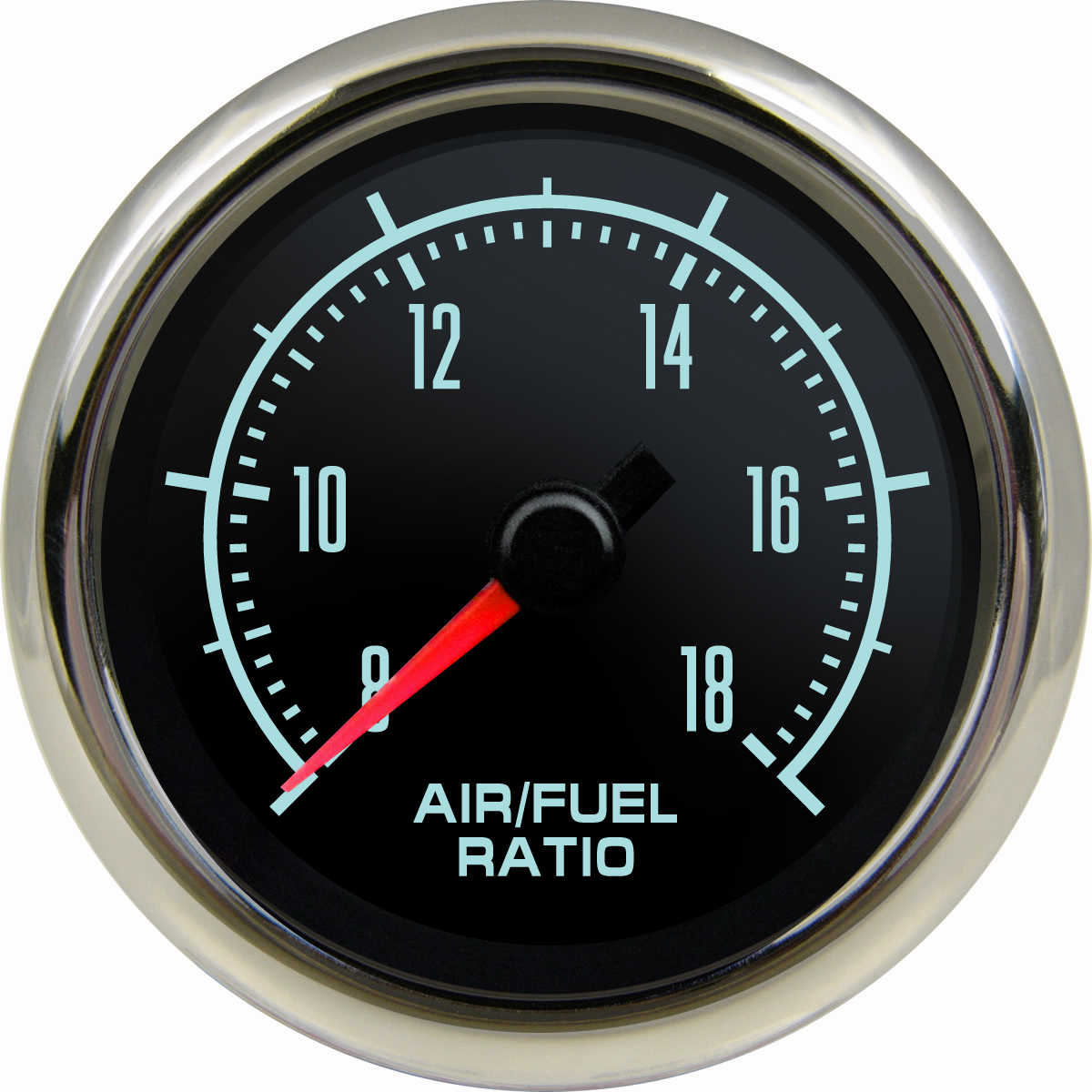

Air-Fuel ratio GENII gauges
from NVU feature an LED backlit full-sweep analog readout of your AFR.  ARF readings from 10:1 to 18:1 with 14 straight up make monitoring your mixture at a glance a breeze.  Gauge operates from any controller or PCM output.  Input ranges are user selectable :0-5V, .5-4.5V.

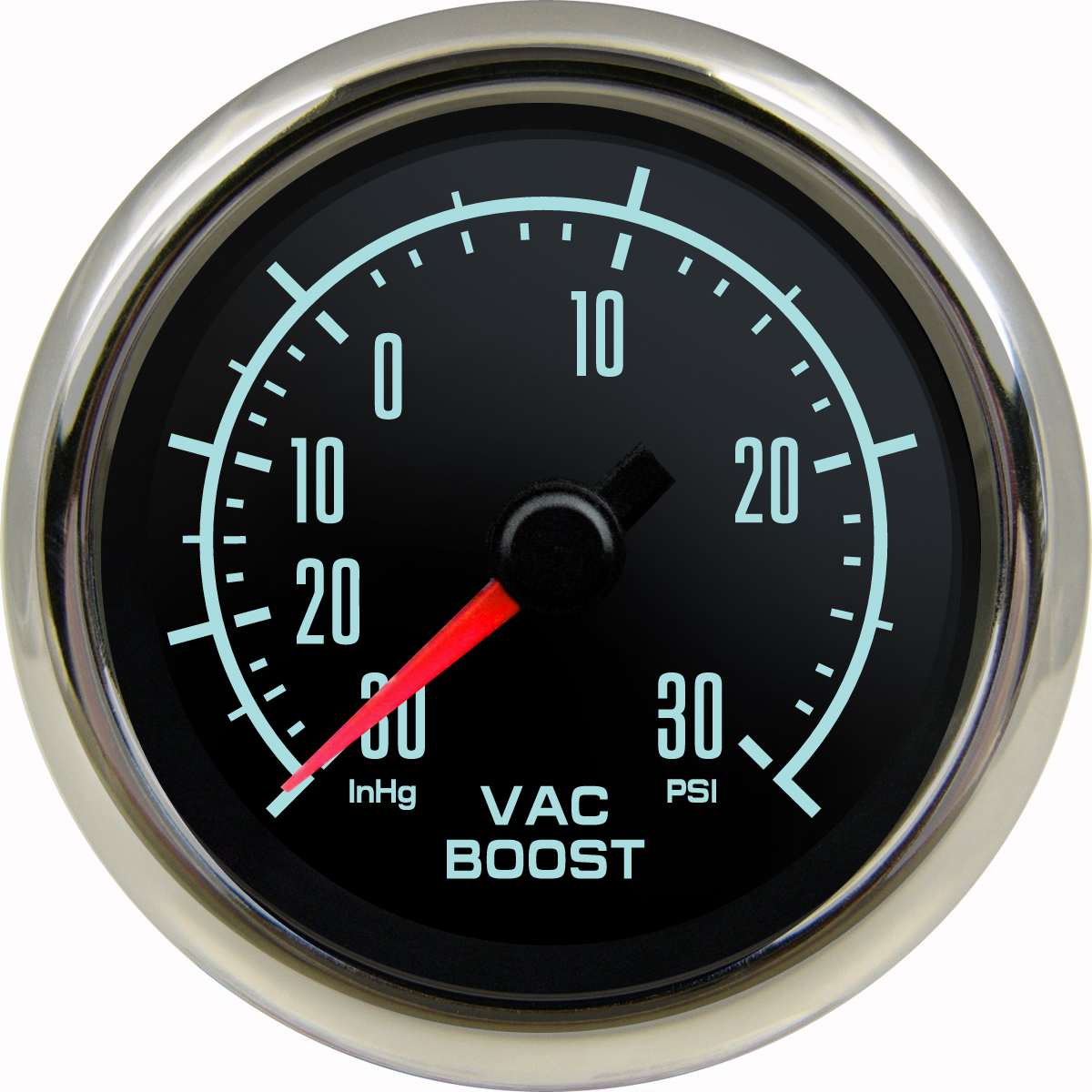

GEN II vacuum-boost gauges are fully electronic, no tubing to kink or break!  Simply install the compact MAP transducer and wire it up, makes for a very clean installation.  Kit includes gauge, spin-on back clamp, VAC/BOOST transducer (1/8-27 thread) and detailed instructions.

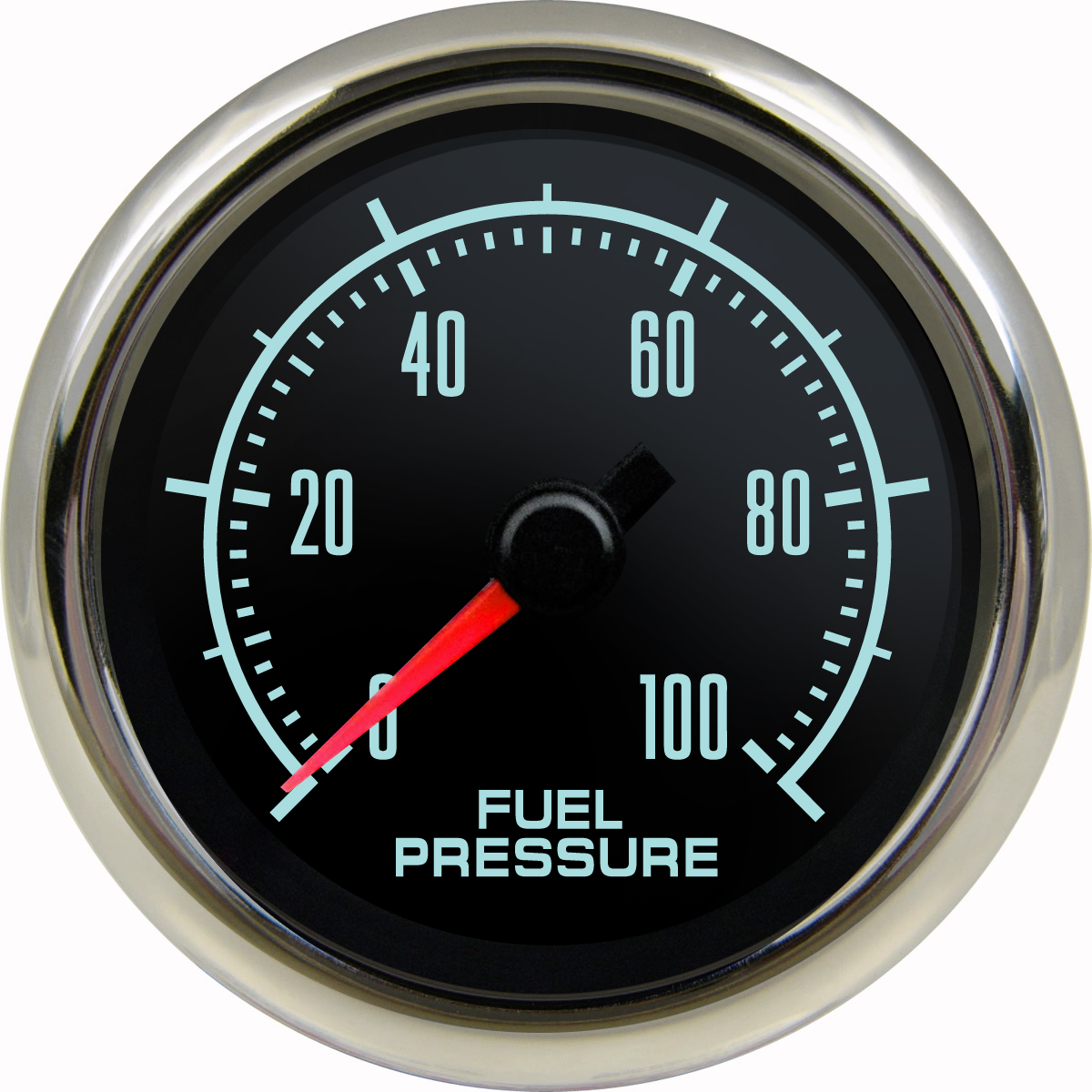

GENII fuel pressure gauges feature LED backlit dials and pointers with full sweep analog readout for precise readings.  Kits include gauge, spin-on back clamp, 240-33 ohm, 0-100 PSI pressure sender with floating ground (1/8-27 NPT thread) and detailed instructions. Gauge reads 0-100 PSI.







Rugged cases with easy connections make installation a snap

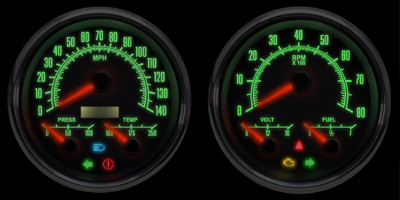

LED backlit dials with backlit pointer are easy on the eyes at night

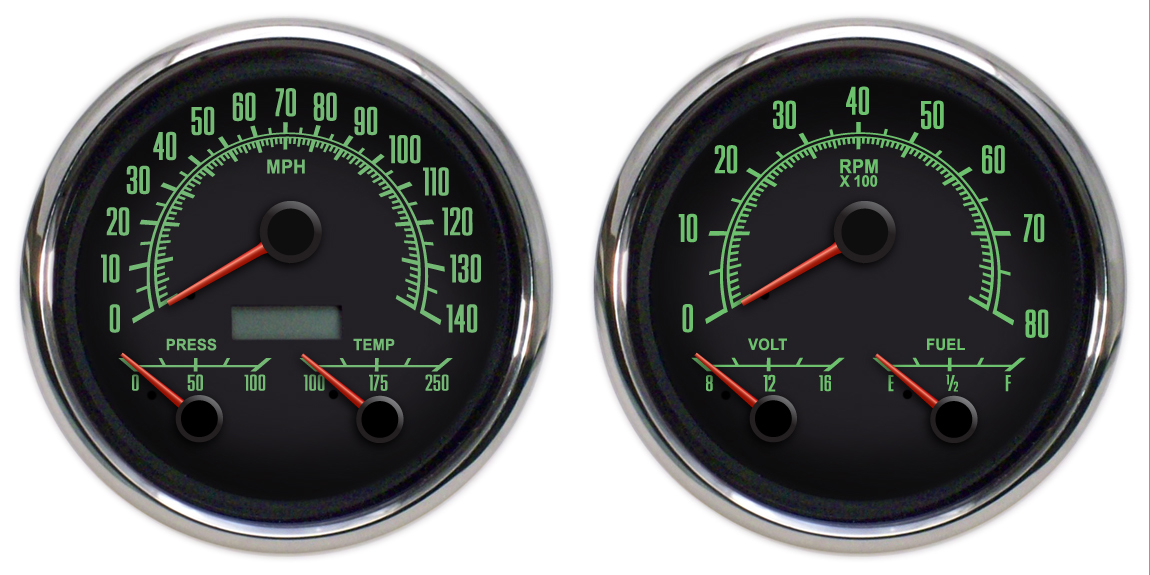

69-layered set

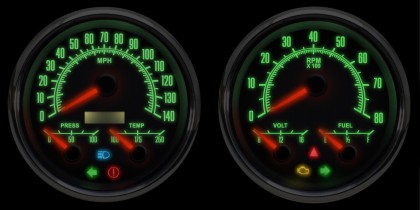

69-set-lit

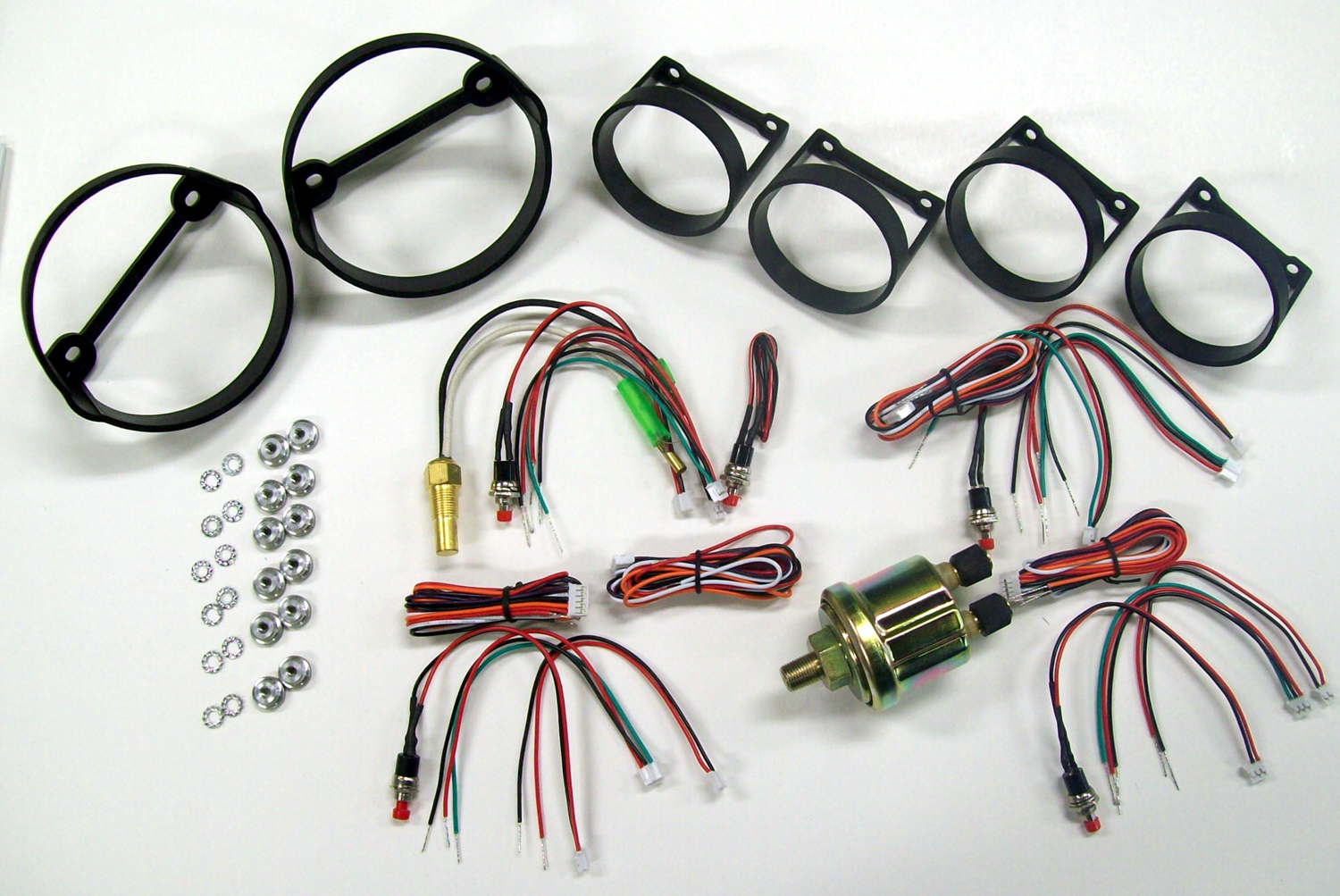

Don't forget about the extras that make your install easier

99003-04  LED DIMMER FOR UP TO 7 GAUGES

99001-04  GM/CHRYSLER SPEED SENDER

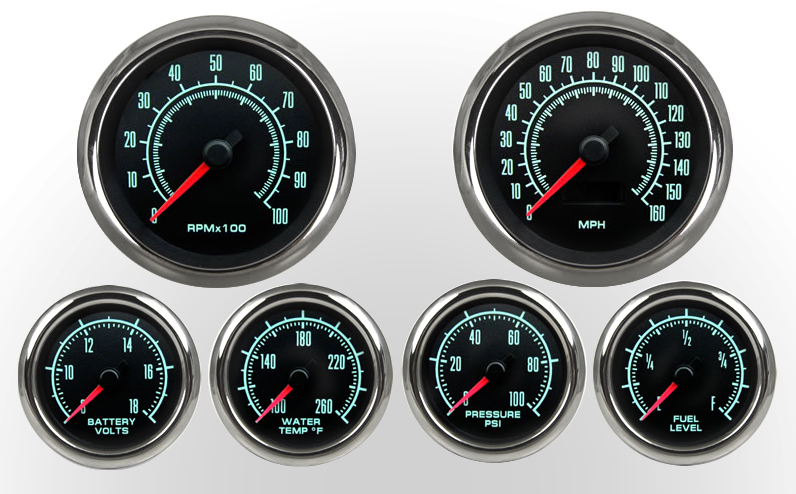

NVU 1969 SERIES are the original backlit muscle car-themed instruments. Bold 60s mint green graphics on a black background with backlit red pointers topped with real glass lenses and hand polished stainless steel bezels.  Great for any restoration, resto-mod or build where modern technology and vintage appearance is a must.

NVU GENII instruments offer some of the highest technology on the market today.  A blend of mircocontroller driven stepper motors, air core meters and LED lighting in a rugged package with simplified interfaces for easy installation.
