INDICATORS
|
|
||
|

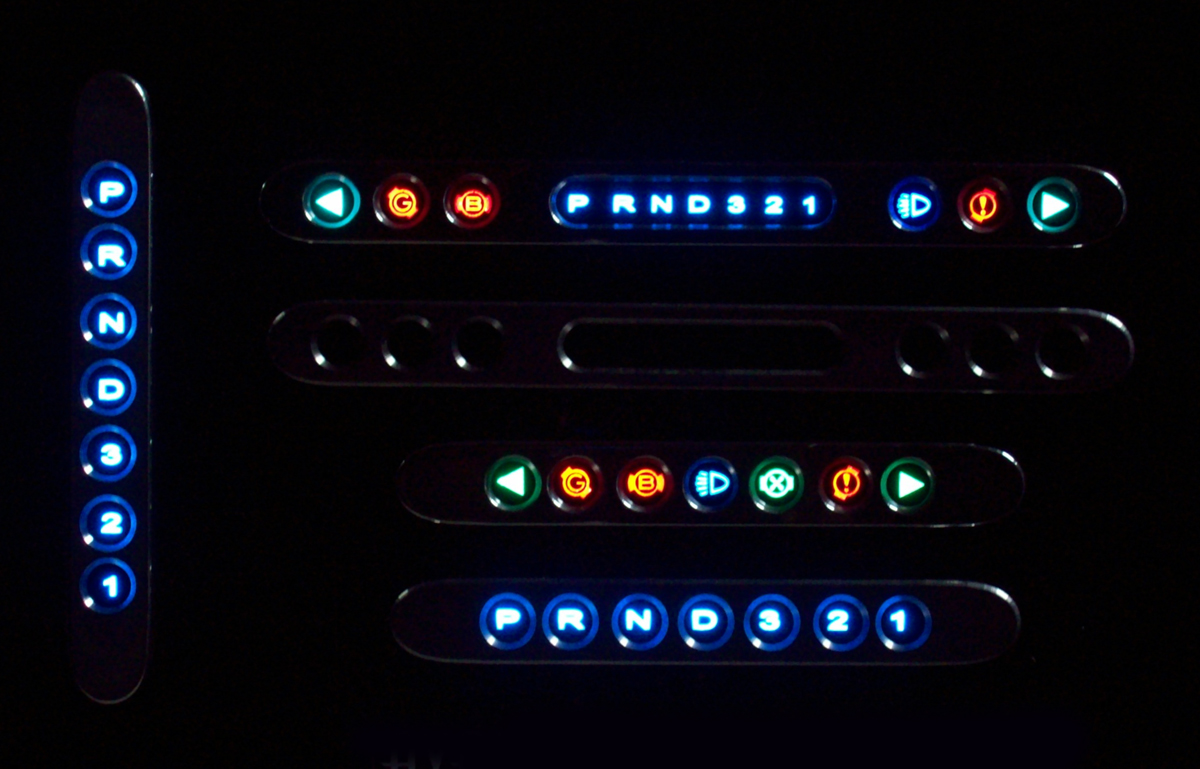

Why drill holes in your dash and install some generic warning lamps? Our exclusive indicator lamp panels allow you to install warning lamps and your shift indicator. Designed and manufactured 100% in Michigan, we are so sure of the product that it also comes with our limited lifetime warranty.

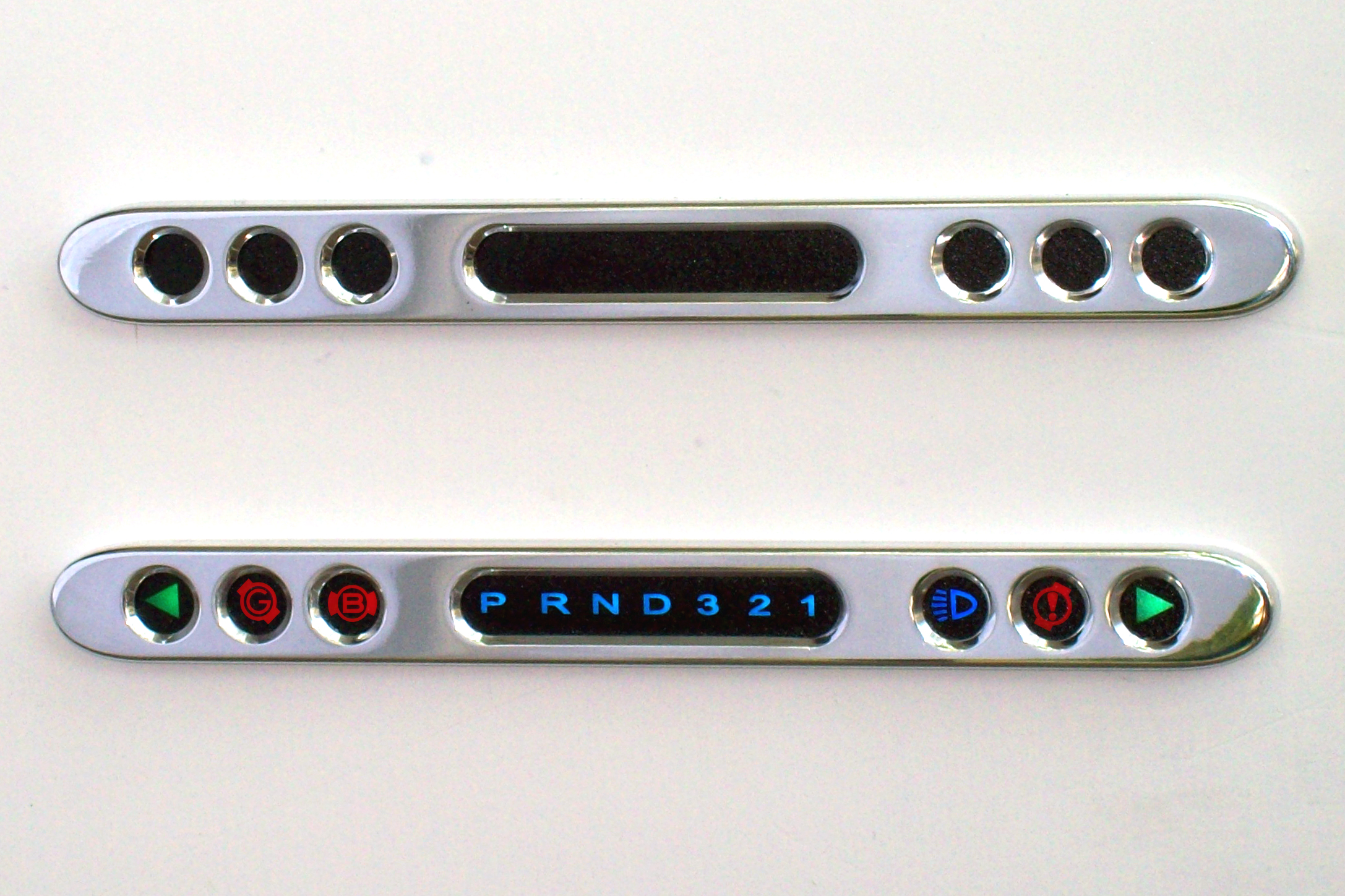

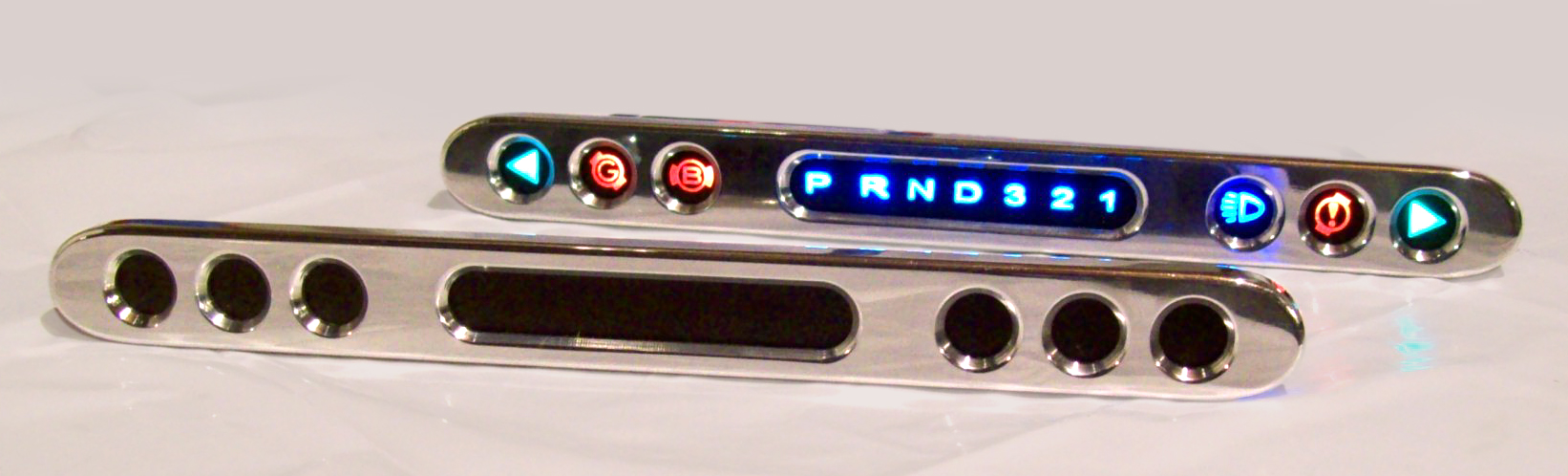

The “large” panel consists of a shift indicator area with gear ranges P, R, N, D, 3, 2, 1. If you don’t need a range, simply do not hook-up that wire. Also includes left and right turn signals, and 4 warning lamps, use them for whatever you need. The LED lamps are integrated onto a circuit board, with a military grade connector that connects to the color-coded wiring harness with integrated resistors. Compact and easy to install. Measures approx. 7.5 in wide , .75 in. tall x .25 deep on panel.
The “small” panel can be set up a number of different ways. We can install warning lamps and turn signals, or shift indicators, mounted either horizontally or vertically. LED lamps are wired individually for the most flexibility. Measures approx. 5.5 in wide , .75 in. tall x .25 deep on panel
Both panels are attached through –panel with included hardware and include:
Solid, machined, polished aluminum face. (Can be painted to match)
Velvet-front silk-screened panel with no read-through when the lamps are off
Lamp spacer/divider for even, no bleed-through lighting
LED diffuser for even lighting without hot-spots
Detailed instructions
*Shift indicator requires the use of a shift indicator drive such as those from Dakota Digital, or similar.
INSTALLATION MANUAL/TEMPLATES CLICK HERE
The “large” panel consists of a shift indicator area with gear ranges P, R, N, D, 3, 2, 1. If you don’t need a range, simply do not hook-up that wire. Also includes left and right turn signals, and 4 warning lamps, use them for whatever you need. The LED lamps are integrated onto a circuit board, with a military grade connector that connects to the color-coded wiring harness with integrated resistors. Compact and easy to install. Measures approx. 7.5 in wide , .75 in. tall x .25 deep on panel.
The “small” panel can be set up a number of different ways. We can install warning lamps and turn signals, or shift indicators, mounted either horizontally or vertically. LED lamps are wired individually for the most flexibility. Measures approx. 5.5 in wide , .75 in. tall x .25 deep on panel
Both panels are attached through –panel with included hardware and include:
Solid, machined, polished aluminum face. (Can be painted to match)
Velvet-front silk-screened panel with no read-through when the lamps are off
Lamp spacer/divider for even, no bleed-through lighting
LED diffuser for even lighting without hot-spots
Detailed instructions
*Shift indicator requires the use of a shift indicator drive such as those from Dakota Digital, or similar.
INSTALLATION MANUAL/TEMPLATES CLICK HERE
|
|

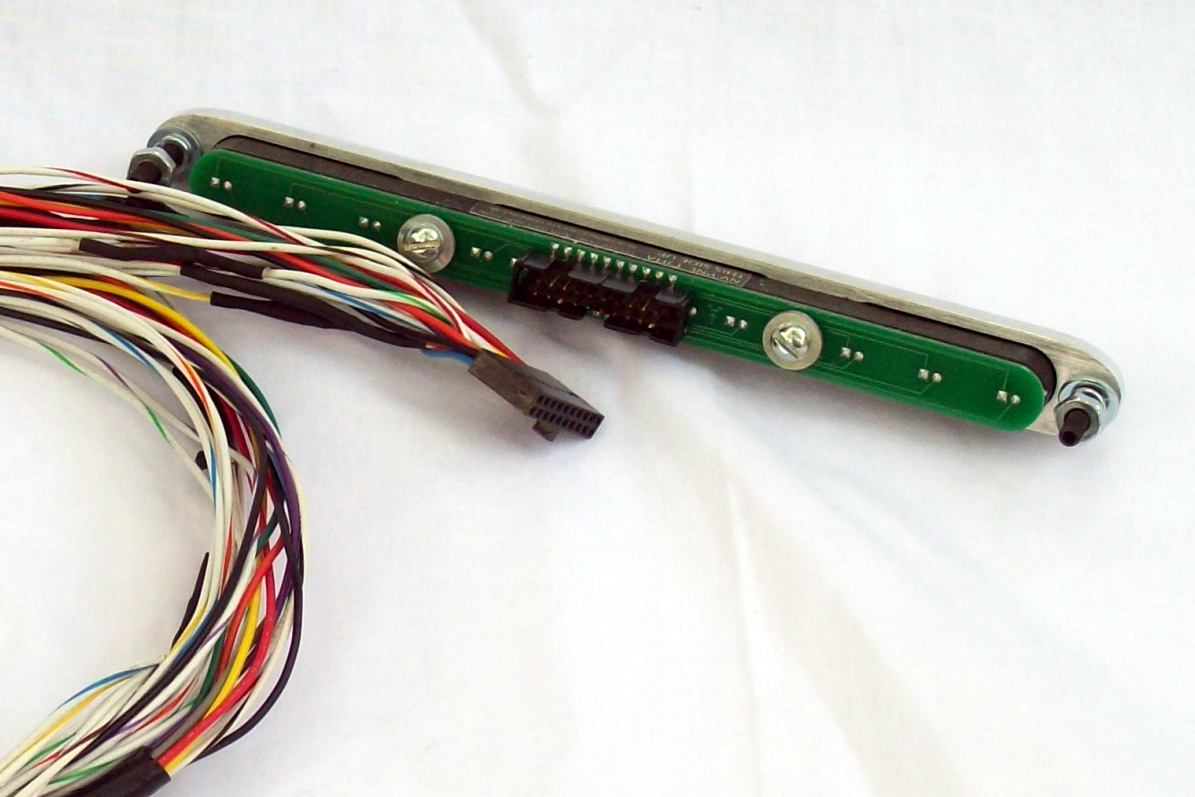

Our 13-lamp panel features an integrated circuit board with wiring harness for easy installation. Similar units simply do an epoxy pour into the cavity. Our light bar can be disassembled for polishing, painting or upgrading the graphics. We added our exclusive spacer for light distribution and a diffuser to eliminate hot spots. Easy 2-bolt installation.

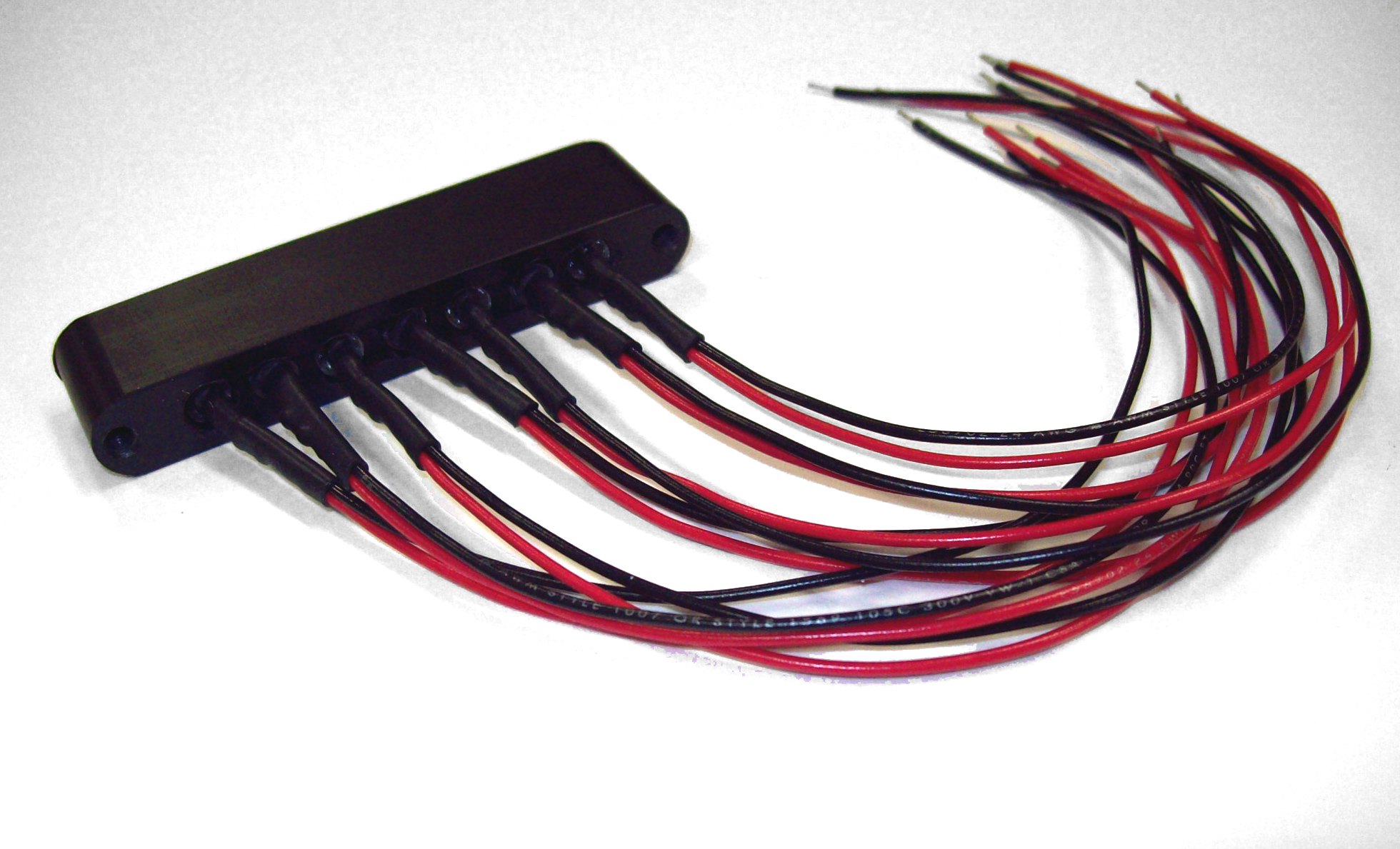

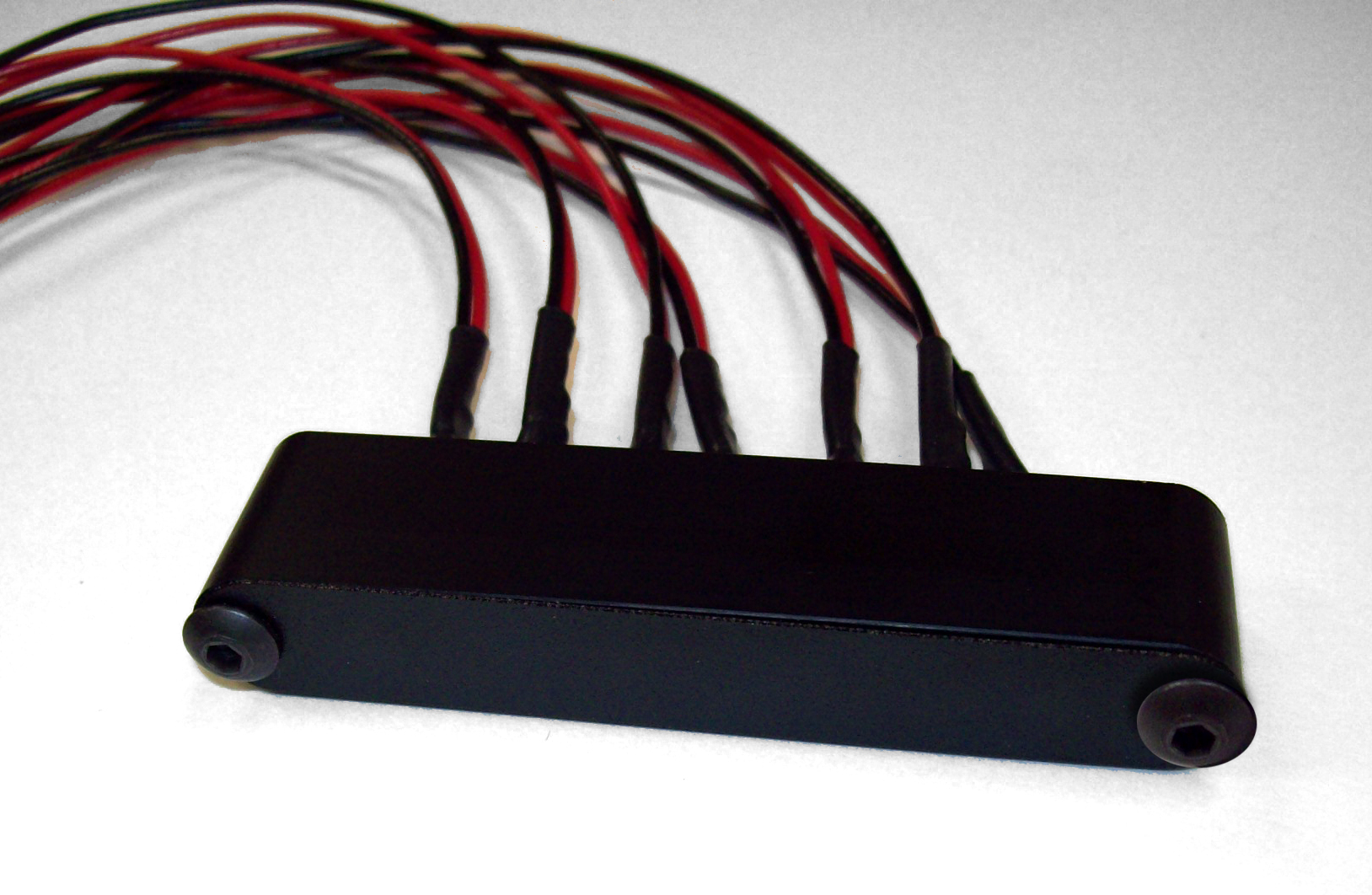

The seven-lamp panel has individual wires for each LED, which enables more flexibility in the design. We can easily transform either panel into a custom piece. We even took the time to apply a label indicating which way is up. The non-glare fronts are so good, you can't see the printing at all with the lamps off.
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
90913-00 13 LAMP PANEL POLISHED
90913-01 13 LAMP PANEL POWDWERCOAT BLACK
13 lamp panel polished/black.
Includes 6 generic warning lamps including turn signals and high beam. Shift indicator portion illuminated blue and can indicate P, R, N, D, 3, 2, 1. Includes color coded wiring harness and detailed instructions. Requires a method to trigger lamps. All lamps require use 12V power. Measures approx. 7.5 in wide , .75 in. tall x .25 deep on panel

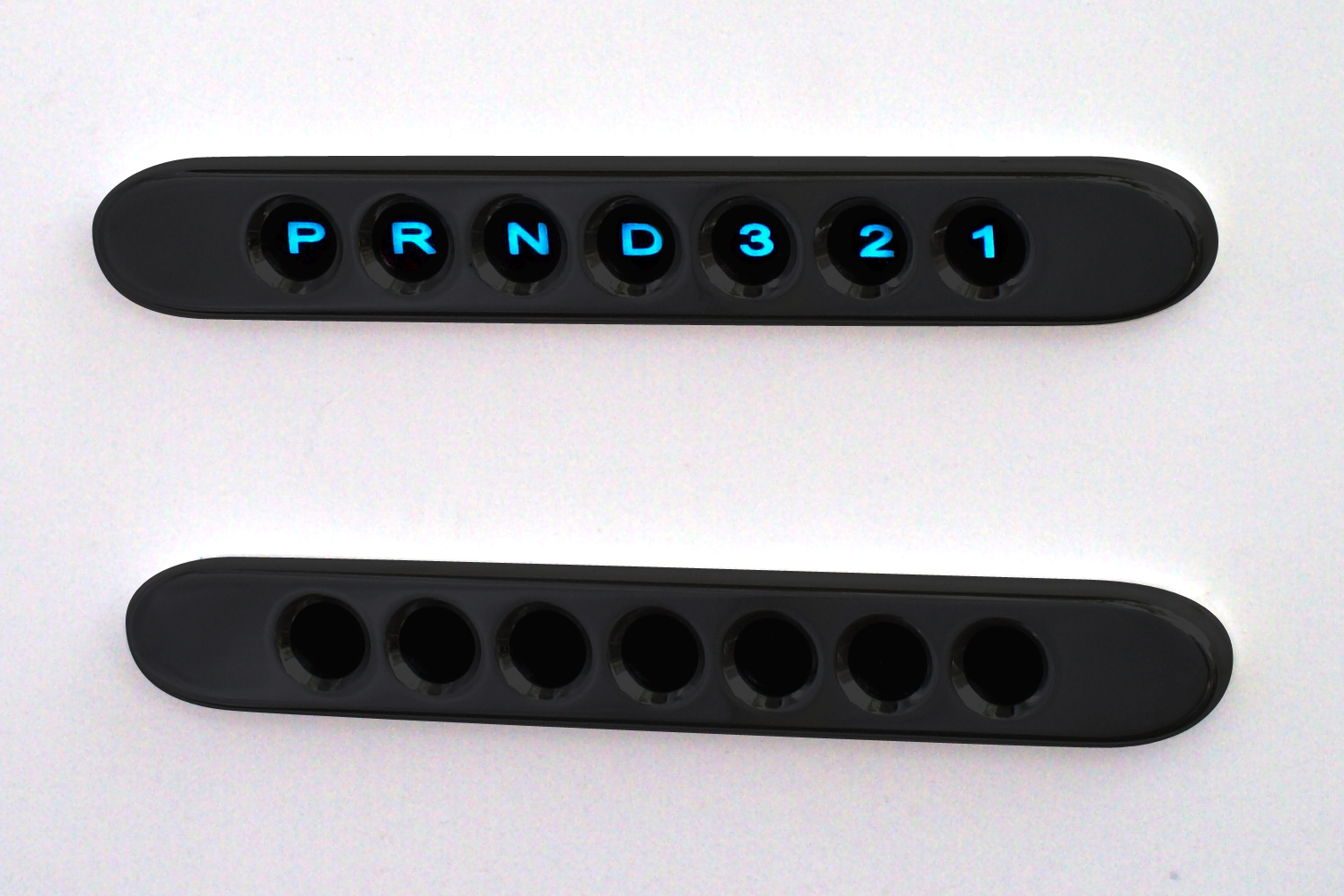

90907-00 7 LAMP PRND321 HORIZ POLISHED
90907-01 7 LAMP PRND321 HORIZ PC BLACK

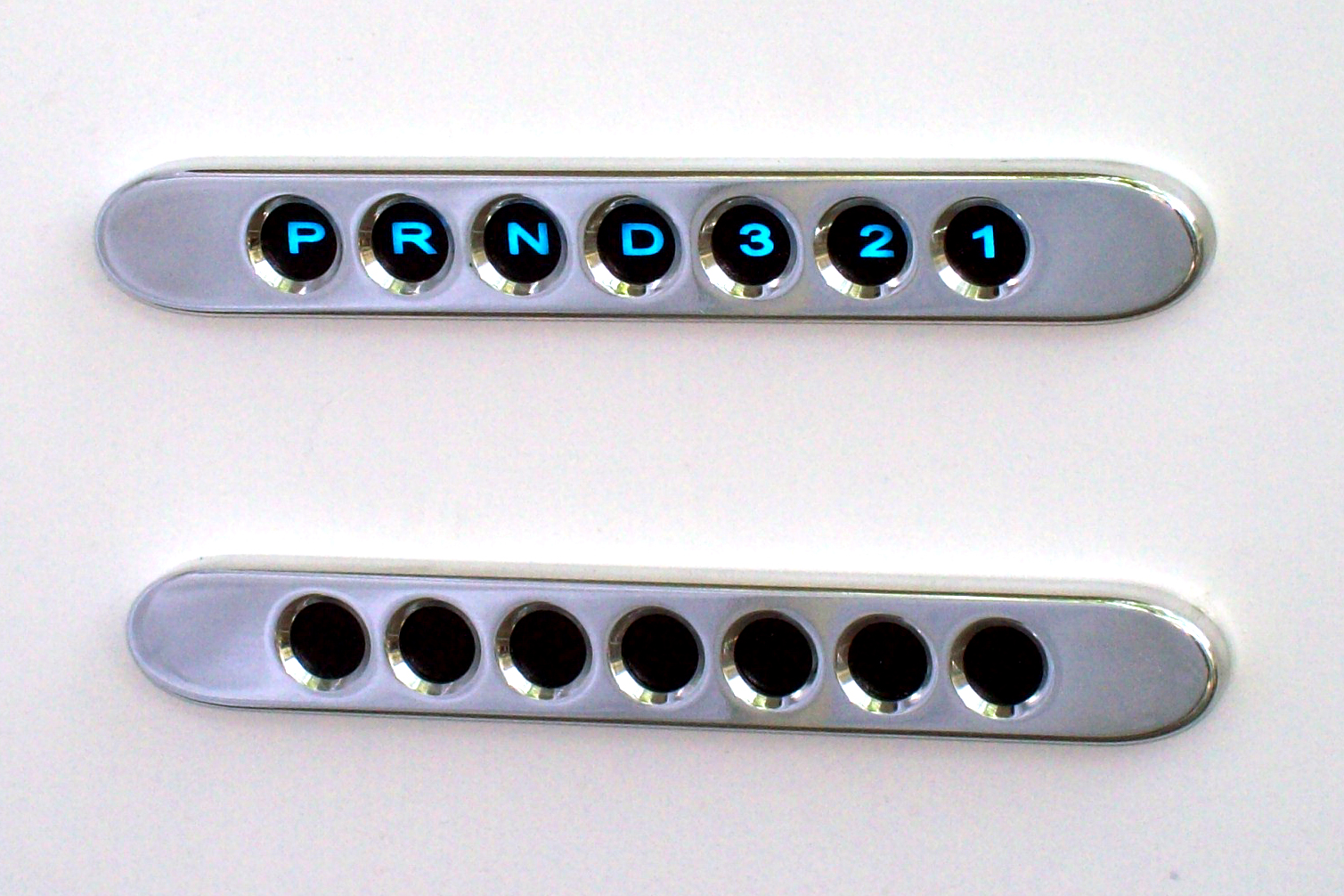

7-lamp indicator panel, horizontal w/ shift indicator Install you shift indicator in a professional, well thought out manner. Our shift indicators illuminate in a blue hue for easy reading. When not lit, indicators disappear completely. Each lamp can be triggered via 12V+ or ground. May require use of a shift indicator driver. 5.5 in wide , .75 in. tall x .25 deep on panel
90917-00 7 LAMP HORIZ ICONS POLISHED
90917-01 7 LAMP HORIZ ICONS PC BLACK
7-lamp indicator panel horizontal.. Ditch the small LEDs in your dash for a clean, professional installation of indicators. Our indicator panels incorporate several widely used icons including turn signals, high beam, brake, etc to help you monitor the functions of your vehicle. Each lamp can be triggered via 12V+ or ground. May require use of a shift indicator driver. 5.5 in wide , .75 in. tall x .25 deep on panel
90937-037 LAMP HORZ TURN/PRND POLISHED
90937-017 LAMP HORZ TURN/PRND PC BLACK

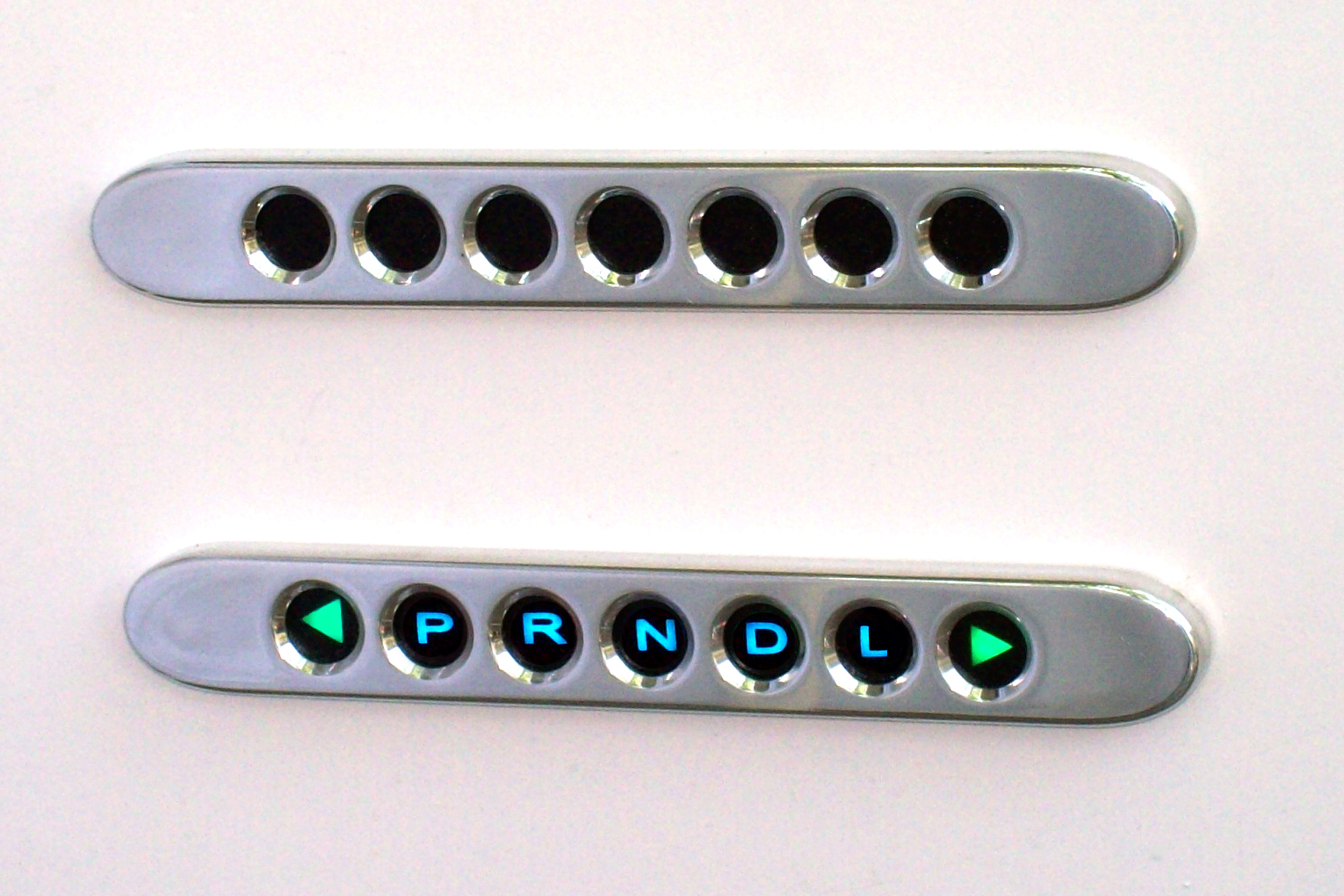

7-lamp indicator panel, horizontal w/ shift indicator and turn signals. Install you shift indicator in a professional, well thought out manner. Our shift indicators illuminate in a blue hue for easy reading and show P,R,N,D. The outboard lamps feature green turn signals When not lit, indicators disappear completely. Each lamp can be triggered via 12V+ or ground. May require use of a shift indicator driver. 5.5 in wide , .75 in. tall x .25 deep on panel
90938-03 7 LAMP HORZ ICONS/CHK ENG POLSHD
90938-01 7 LAMP HORZ ICONS/CHK ENG PC BLK
7-lamp indicator panel horizontal with check engine, . Ditch the small LEDs in your dash for a clean, professional installation of indicators. Our indicator panels incorporate several widely used icons including turn signals, high beam, check engine, brake, etc to help you monitor the functions of your vehicle. Each lamp can be triggered via 12V+ or ground. May require use of a shift indicator driver. 5.5 in wide , .75 in. tall x .25 deep on panel
90927-00 7-LAMP VERT PRND321 POLISHED
90927-01 7-LAMP VERT PRND321 POLISHED

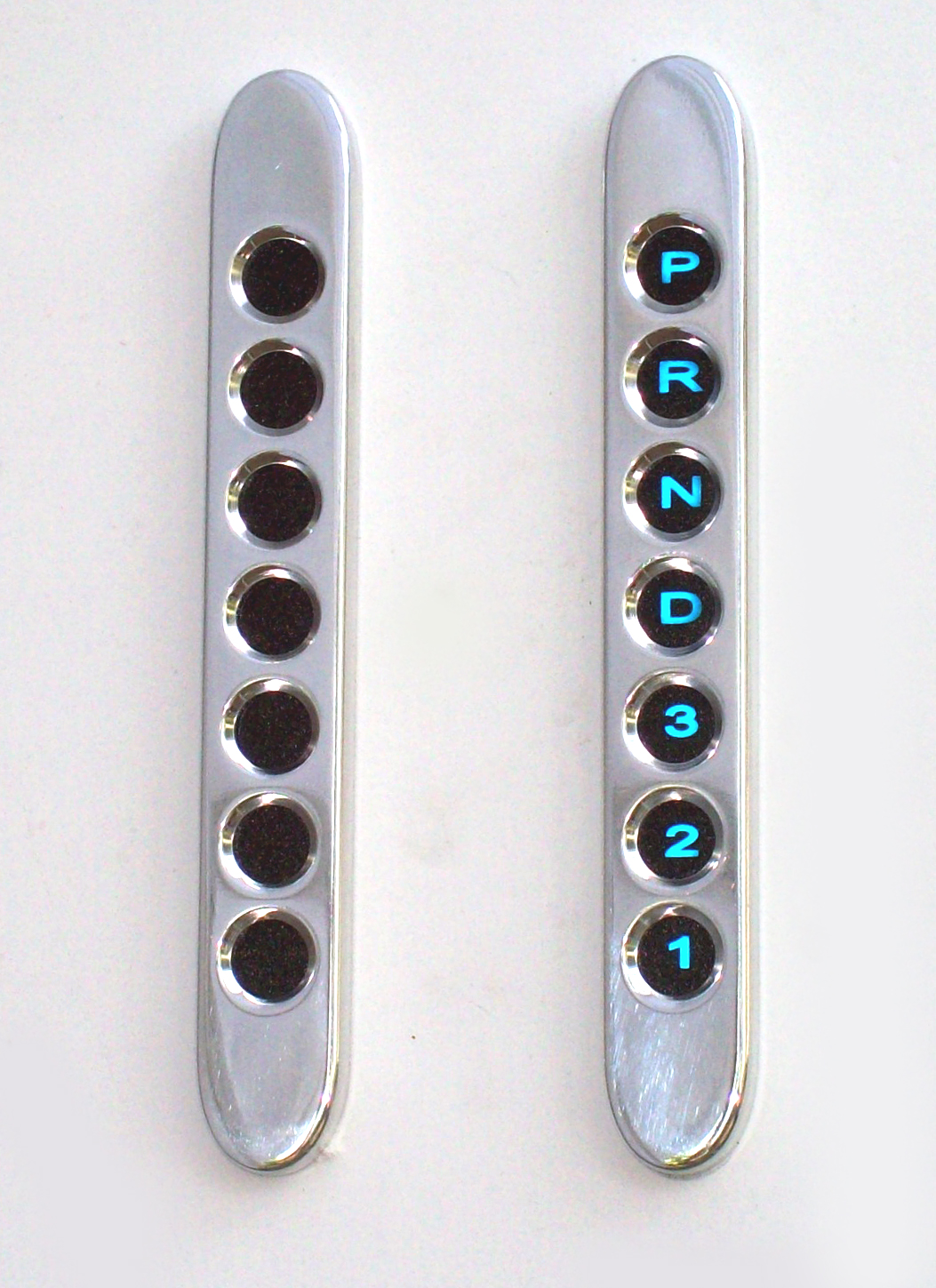

7-lamp indicator panel, vertical w/ shift indicator. Install you shift indicator in a professional, well thought out manner. Our shift indicators illuminate in a blue hue for easy reading. When not lit, indicators disappear completely. Each lamp can be triggered via 12V+ or ground. May require use of a shift indicator driver. 5.5 in wide , .75 in. tall x .25 deep on panel

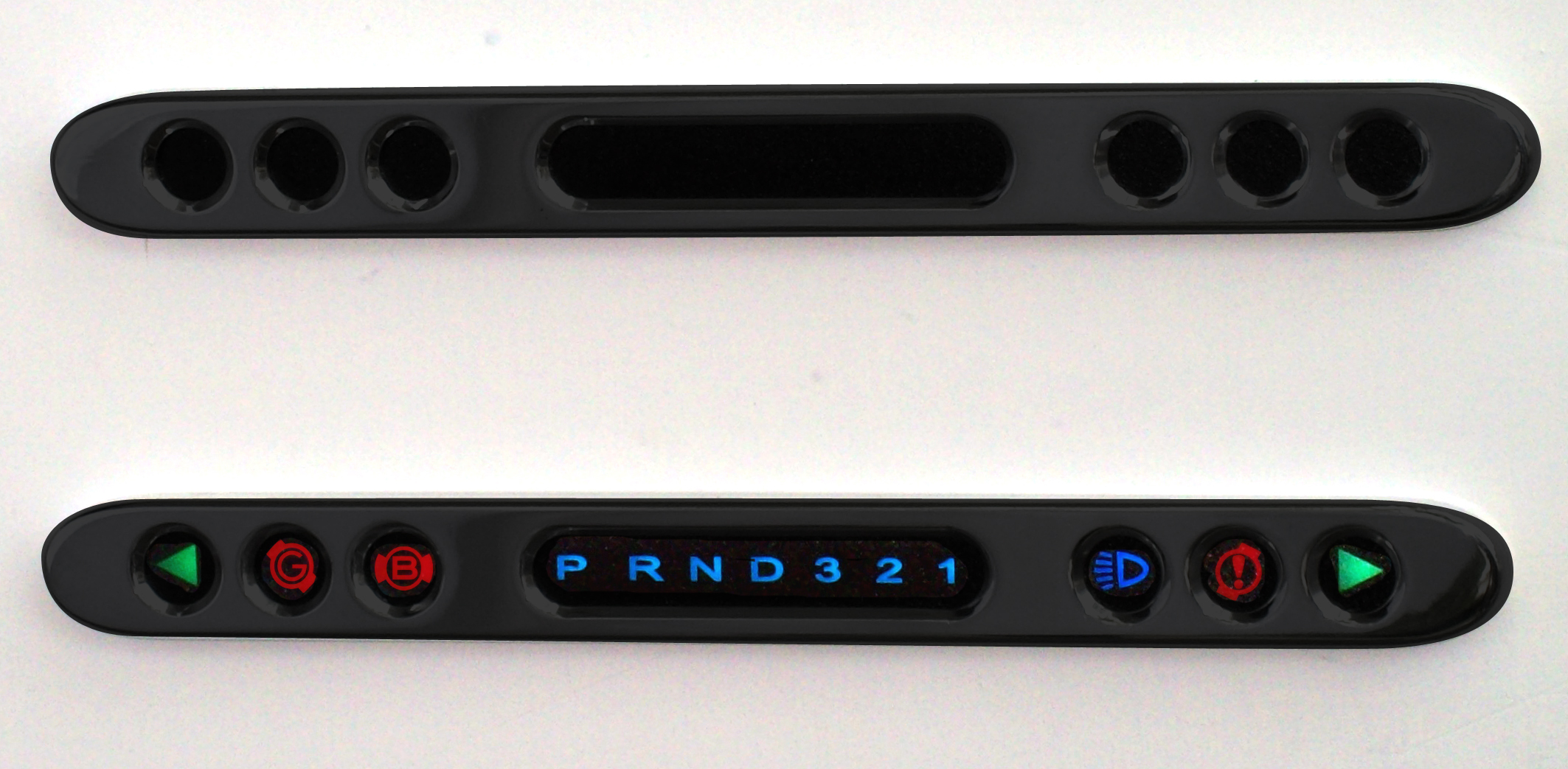

90913-01 13 LAMP PANEL POWDWERCOAT BLACK
13 lamp panel polished/black.
Includes 6 generic warning lamps including turn signals and high beam. Shift indicator portion illuminated blue and can indicate P, R, N, D, 3, 2, 1. Includes color coded wiring harness and detailed instructions. Requires a method to trigger lamps. All lamps require use 12V power. Measures approx. 7.5 in wide , .75 in. tall x .25 deep on panel
90907-00 7 LAMP PRND321 HORIZ POLISHED
90907-01 7 LAMP PRND321 HORIZ PC BLACK
7-lamp indicator panel, horizontal w/ shift indicator Install you shift indicator in a professional, well thought out manner. Our shift indicators illuminate in a blue hue for easy reading. When not lit, indicators disappear completely. Each lamp can be triggered via 12V+ or ground. May require use of a shift indicator driver. 5.5 in wide , .75 in. tall x .25 deep on panel
90917-00 7 LAMP HORIZ ICONS POLISHED
90917-01 7 LAMP HORIZ ICONS PC BLACK
7-lamp indicator panel horizontal.. Ditch the small LEDs in your dash for a clean, professional installation of indicators. Our indicator panels incorporate several widely used icons including turn signals, high beam, brake, etc to help you monitor the functions of your vehicle. Each lamp can be triggered via 12V+ or ground. May require use of a shift indicator driver. 5.5 in wide , .75 in. tall x .25 deep on panel
90937-037 LAMP HORZ TURN/PRND POLISHED
90937-017 LAMP HORZ TURN/PRND PC BLACK
7-lamp indicator panel, horizontal w/ shift indicator and turn signals. Install you shift indicator in a professional, well thought out manner. Our shift indicators illuminate in a blue hue for easy reading and show P,R,N,D. The outboard lamps feature green turn signals When not lit, indicators disappear completely. Each lamp can be triggered via 12V+ or ground. May require use of a shift indicator driver. 5.5 in wide , .75 in. tall x .25 deep on panel

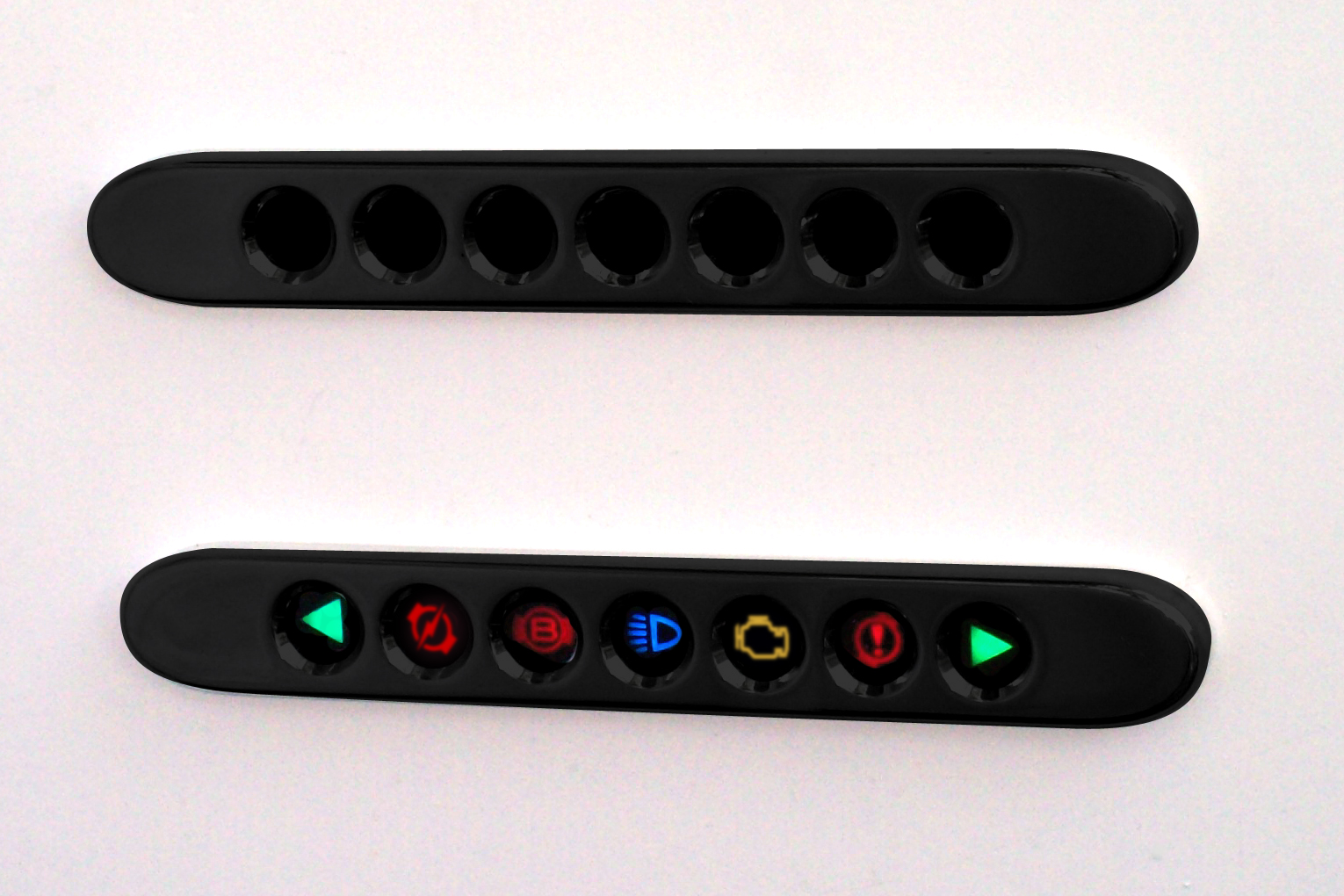

90938-03 7 LAMP HORZ ICONS/CHK ENG POLSHD
90938-01 7 LAMP HORZ ICONS/CHK ENG PC BLK
7-lamp indicator panel horizontal with check engine, . Ditch the small LEDs in your dash for a clean, professional installation of indicators. Our indicator panels incorporate several widely used icons including turn signals, high beam, check engine, brake, etc to help you monitor the functions of your vehicle. Each lamp can be triggered via 12V+ or ground. May require use of a shift indicator driver. 5.5 in wide , .75 in. tall x .25 deep on panel

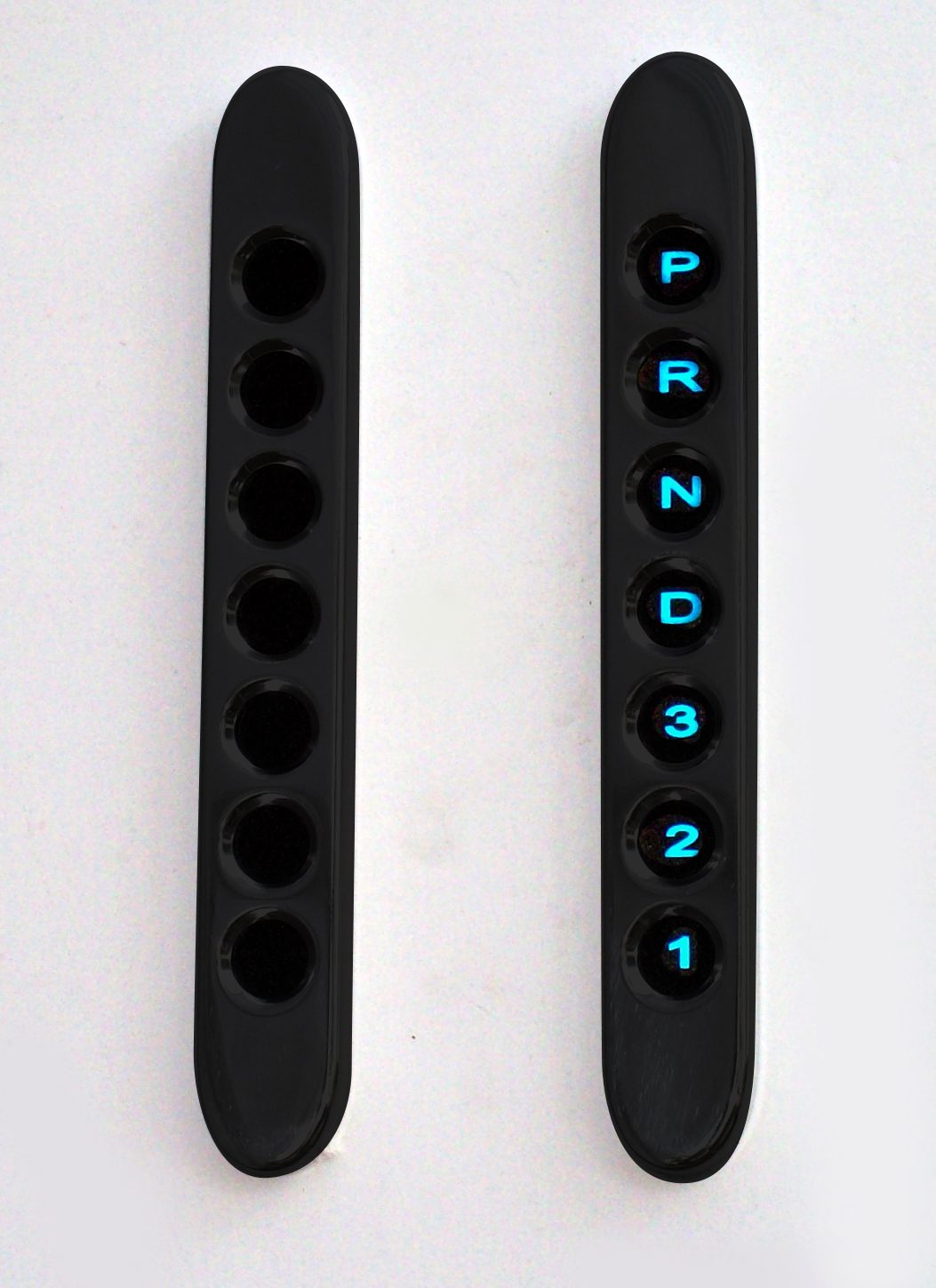

90927-00 7-LAMP VERT PRND321 POLISHED
90927-01 7-LAMP VERT PRND321 POLISHED
7-lamp indicator panel, vertical w/ shift indicator. Install you shift indicator in a professional, well thought out manner. Our shift indicators illuminate in a blue hue for easy reading. When not lit, indicators disappear completely. Each lamp can be triggered via 12V+ or ground. May require use of a shift indicator driver. 5.5 in wide , .75 in. tall x .25 deep on panel
REAR MOUNT INDICATOR PANELS

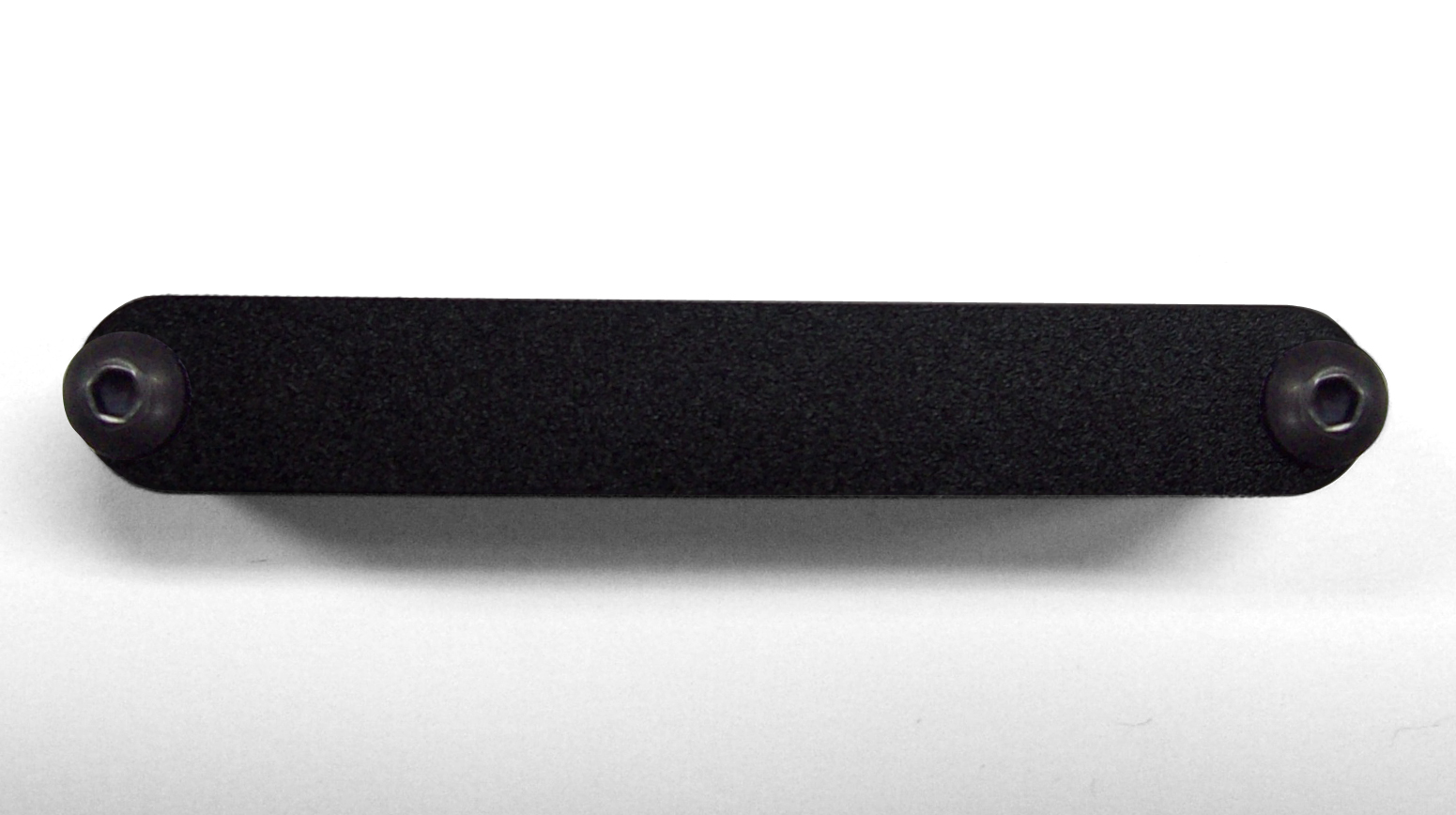

Tight on space and need to display the warning information you need? Our rear-mount indicator panels mount though the dash panel and display your information in a clean, professional manner. No more LEDs scattered throughout the interior. All lamps use 12V+ or ground to activate. Panel measures 3in long X ˝ in X 1in deep. All made in Detroit
Tight on space and need to display the warning information you need? Our rear-mount indicator panels mount though the dash panel and display your information in a clean, professional manner. No more LEDs scattered throughout the interior. All lamps use 12V+ or ground to activate. Panel measures 3in long X ˝ in X 1in deep. All made in Detroit
|
|
||
|
|
||
|
|
INSTALLATION MANUAL/TEMPLATES CLICK HERE
91017-01 7-LAMP REAR MOUNT INDICATOR ICONS
7-lamp indicator panel rear mount
Icons include, turn signals, high beam, check engine and other generic icons that you can use for anything you need. Panel goes dark when not in use. All lamps use 12V+ or ground to activate. Panel measures 3in long X ˝ in X 1in deep.

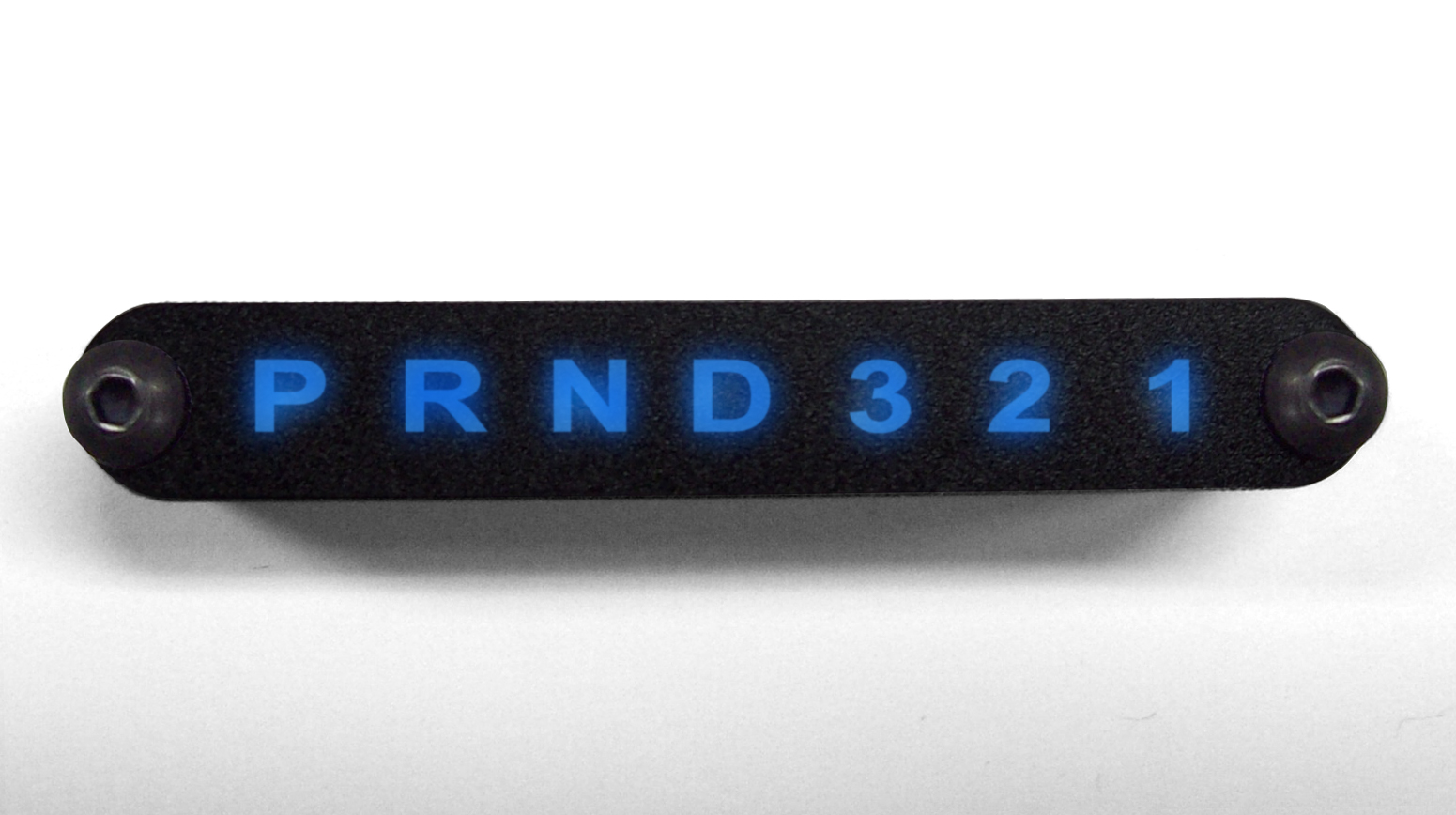

91007-01 7-LAMP REAR MOUNT INDICATOR PRND321 HORIZ
7-lamp indicator panel rear mount
PRND321 is displayed in blue when on, panel goes dark when not in use. May require use of shift driver to operate. All lamps use 12V+ or ground to activate. Panel measures 3in long X ˝ in X 1in deep

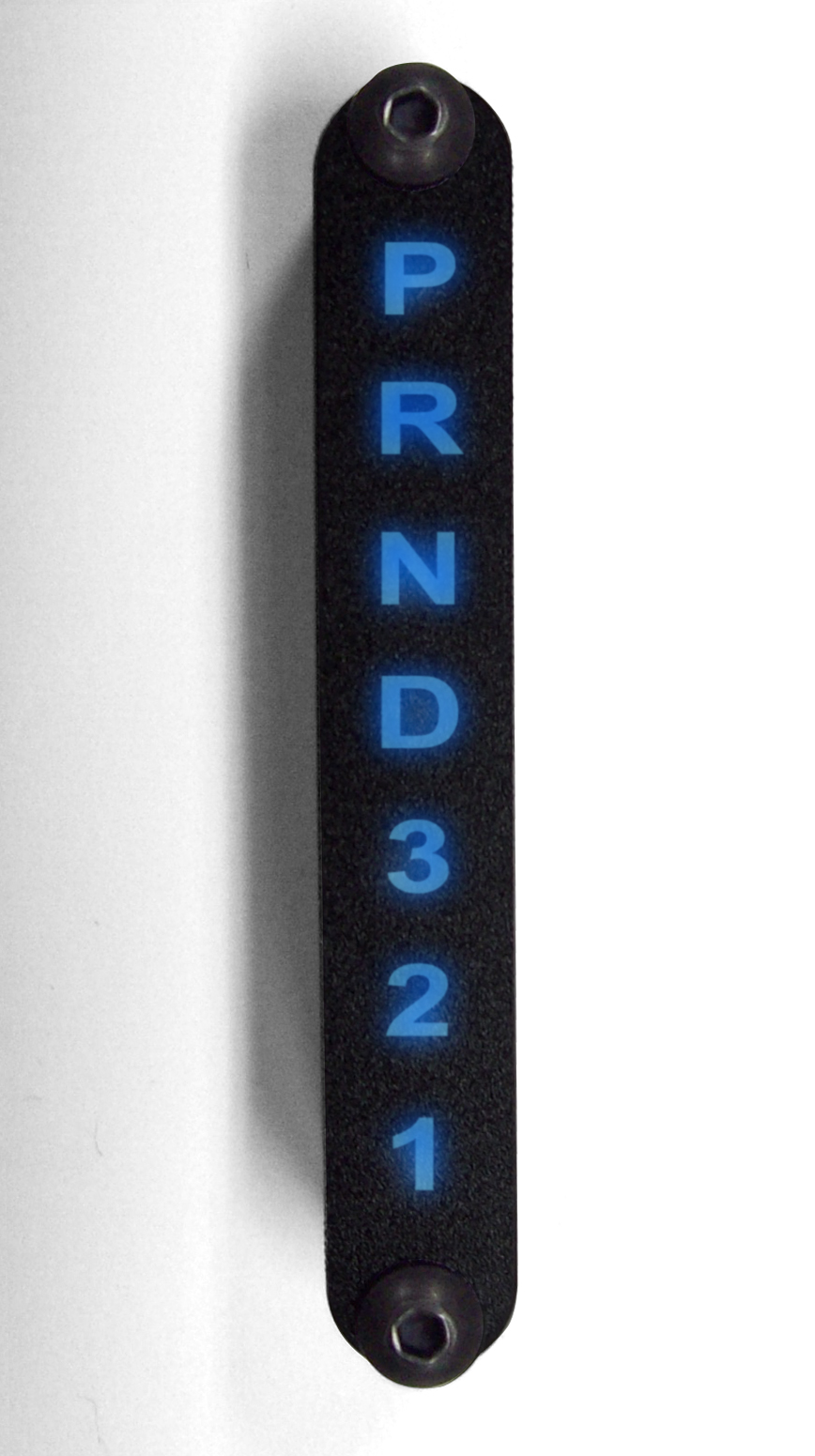

91027-01 7-LAMP REAR MOUNT INDICATOR PANEL PRND321 VERTICAL
7-lamp indicator panel rear mount vertical
PRND321 is displayed in blue when on, panel goes dark when not in use. May require use of shift driver to operate. All lamps use 12V+ or ground to activate. Panel measures 3in long X ˝ in X 1in deep
91017-01 7-LAMP REAR MOUNT INDICATOR ICONS
7-lamp indicator panel rear mount
Icons include, turn signals, high beam, check engine and other generic icons that you can use for anything you need. Panel goes dark when not in use. All lamps use 12V+ or ground to activate. Panel measures 3in long X ˝ in X 1in deep.
91007-01 7-LAMP REAR MOUNT INDICATOR PRND321 HORIZ
7-lamp indicator panel rear mount
PRND321 is displayed in blue when on, panel goes dark when not in use. May require use of shift driver to operate. All lamps use 12V+ or ground to activate. Panel measures 3in long X ˝ in X 1in deep
91027-01 7-LAMP REAR MOUNT INDICATOR PANEL PRND321 VERTICAL
7-lamp indicator panel rear mount vertical
PRND321 is displayed in blue when on, panel goes dark when not in use. May require use of shift driver to operate. All lamps use 12V+ or ground to activate. Panel measures 3in long X ˝ in X 1in deep
CUSTOM PANELS-
Need something special? about 50% of the indicator panels we build are for private label and custom applications. We have a large library of icons , or out whatever words or symbols you need to monitir your functions.
Process is easy to do, timeframe is generally a week-10 days to complete a custom indicator.
Just let us know what you need, we provide a proof sheet before printing the custom overlkay so there ar no surprises.
Need something special? about 50% of the indicator panels we build are for private label and custom applications. We have a large library of icons , or out whatever words or symbols you need to monitir your functions.
Process is easy to do, timeframe is generally a week-10 days to complete a custom indicator.
Just let us know what you need, we provide a proof sheet before printing the custom overlkay so there ar no surprises.
Any color-any graphic- its up to you. We will provide a full size proof sheet to verify you are getting exactly what you expect.
What does it cost? About $80.00-$100.00 additional depending on when we are running parts, and if we have to create the artwork. Group buys make this much less expensive. It costs about the same to to 5 the screen printed panels as it does one.
What does it cost? About $80.00-$100.00 additional depending on when we are running parts, and if we have to create the artwork. Group buys make this much less expensive. It costs about the same to to 5 the screen printed panels as it does one.
|
INDICATOR GAUGES
Tired of those ugly LEDs on your dash that just stand out instead of blend in? Our indicator gauges offer a better way to display turn signals high beam and warning lamps. Each gauge is powered via 12V and can be triggered via ground or 12V+. Mounts in a standard 2-1/16”mounting hole and available in several colors, bezels and lens styles.

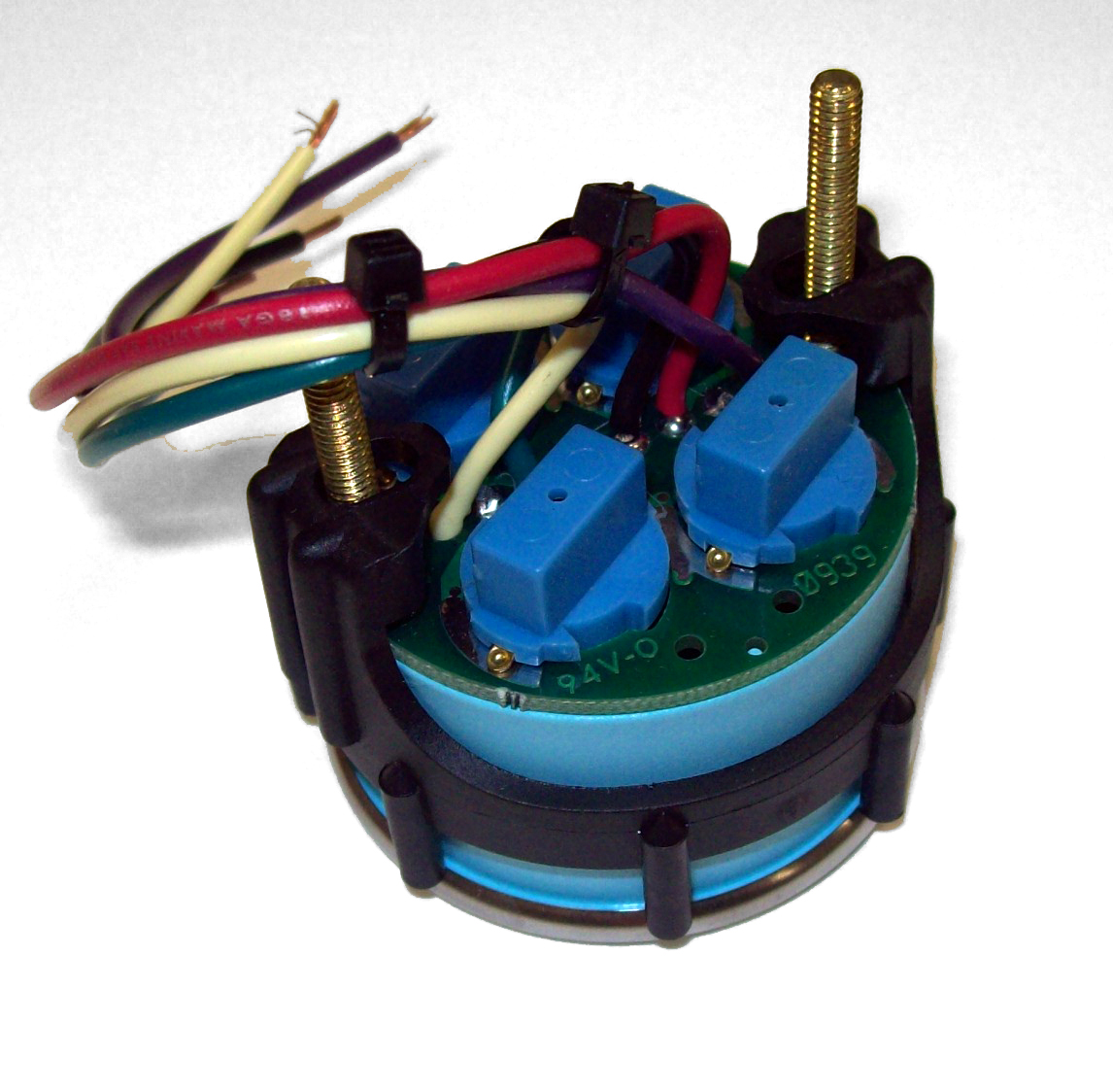

Wires easily via 4 color coded pigtails on rear.
Tired of those ugly LEDs on your dash that just stand out instead of blend in? Our indicator gauges offer a better way to display turn signals high beam and warning lamps. Each gauge is powered via 12V and can be triggered via ground or 12V+. Mounts in a standard 2-1/16”mounting hole and available in several colors, bezels and lens styles.
Wires easily via 4 color coded pigtails on rear.
|
|
||
|
|
||
|
|
||
|
|
||
|
|

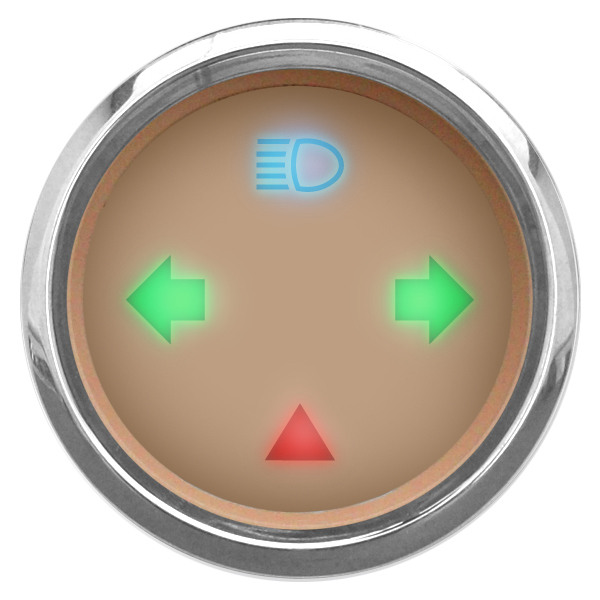

90101-02 INDICATOR GAUGE BEIGE STAINLESS BEZEL, DOME LENS
90102-02 INDICATOR GAUGE BEIGE STAINLESS BEZEL, FLAT LENS
90102-02 INDICATOR GAUGE BEIGE STAINLESS BEZEL, FLAT LENS
90101-01 INDICATOR GAUGE BLACK, STAINLESS BEZEL, DOME LENS
90102-01 INDICATOR GAUGE BLACK, STAINLESS BEZEL,FLAT LENS
90102-01 INDICATOR GAUGE BLACK, STAINLESS BEZEL,FLAT LENS

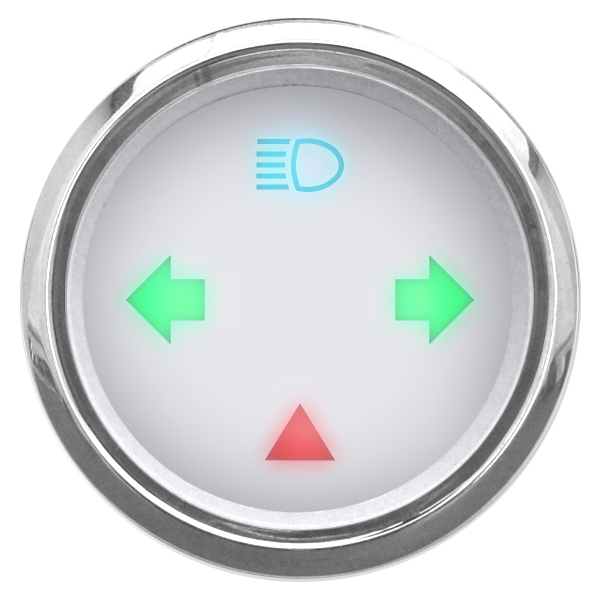

90101-03 INDICATOR GAUGE WHITE STAINLESS BEZEL, DOME LENS
90102-03 INDICATOR GAUGE WHITE STAINLESS BEZEL, FLAT LENS
90102-03 INDICATOR GAUGE WHITE STAINLESS BEZEL, FLAT LENS
90101-03 INDICATOR GAUGE WHITE STAINLESS BEZEL, DOME LENS
90103-01 INDICATOR GAUGE BLACK, TITANIUM BEZEL, FLAT LENS
90103-01 INDICATOR GAUGE BLACK, TITANIUM BEZEL, FLAT LENS
90101-03 INDICATOR GAUGE WHITE STAINLESS BEZEL, DOME LENS
90103-03 INDICATOR GAUGE WHITE TITANIUM BEZEL, FLAT LENS
90103-03 INDICATOR GAUGE WHITE TITANIUM BEZEL, FLAT LENS
